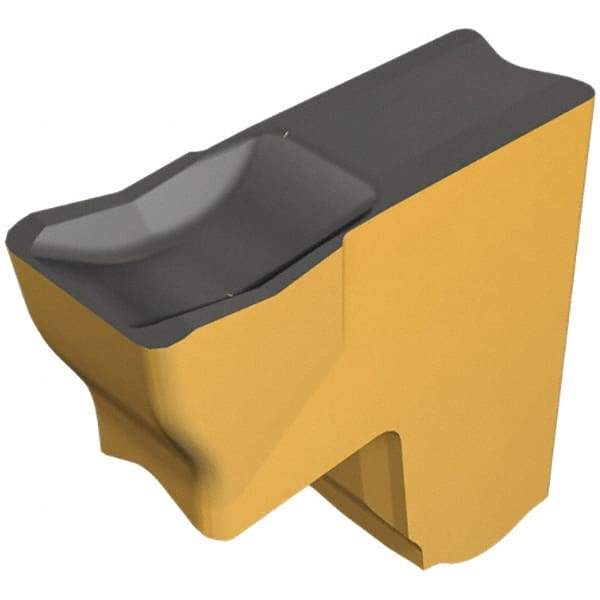

Iscar - TAG4 Grade IC830, 4mm Cutting Width Carbide Cutoff Insert - Neutral Lead Angle, 0.24mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 46669792
Brand: Iscar
Model #: 6004546
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | TAG |
| Insert Size | 4 |
| Lead Angle Direction | Neutral |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Relief Angle | 7 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0094 |
| Corner Radius (mm) | 0.24 |
| Width Tolerance | 0.05 (mm) |
| Manufacturers Catalog Number | TAG N4W |
