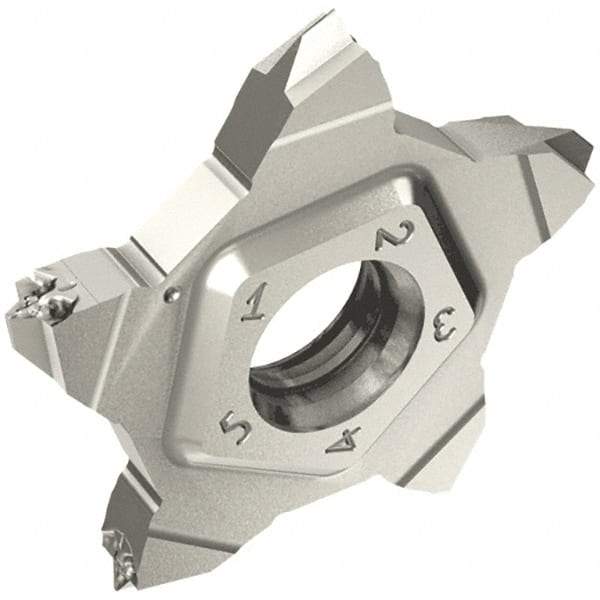

Iscar - PENTA24 Grade IC908, External BSF, BSPT & Whitworth Threading Insert - 28 TPI Ext Pitch, Right Hand Insert, TiAlN Finish, Carbide
Item #: 46669735
Brand: Iscar
Model #: 6004692
Exact Tooling IR#: 04
Features and Benefits
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | PENTA |
| Insert Size | 24 |
| Thread Type | External |
| Cutting Direction | Neutral |
| Insert Hand | Right Hand |
| Thread Standard | BSF; BSPT; Whitworth |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| External Pitch/TPI | 28 TPI |
| Coating | TiAlN |
| Material | Carbide |
| Coating Process | PVD |
| ISO Number | PENTA 24-28-W |
| Corner Radius (mm) | 0.09 |
| Corner Radius (Decimal Inch) | 0.0040 |
| Width of Cutting Tip (mm) | 2.40 |
| Width of Cutting Tip (Decimal Inch) | 0.1420 |
| Thickness (mm) | 4.00 |
| Thickness (Decimal Inch) | 0.1570 |
| Included Angle of Threading Tip | 60 |
| Overall Length (Decimal Inch) | 0.9450 |
| Manufacturers Catalog Number | 6004692 |
