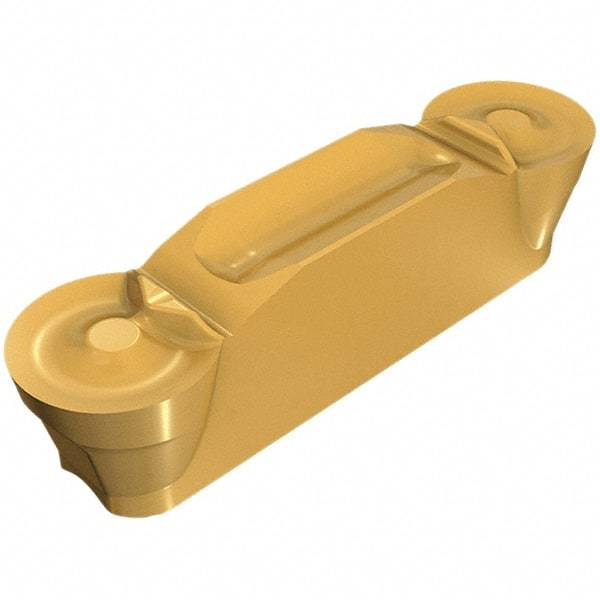

Iscar - 630FGMA Grade IC07, 6mm Cutting Width Carbide Grooving Insert - 3mm Max Depth of Cut, 3mm Corner Radius, Uncoated
Item #: 46667226
Brand: Iscar
Model #: 6403572
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | FGMA |
| Insert Size | 630 |
| Material | Carbide |
| Cutting Width (mm) | 6.00 |
| Cutting Width (Decimal Inch) | 0.2360 |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC07 |
| Coating | Uncoated |
| Relief Angle | 10 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.2360 |
| Corner Radius (mm) | 3.00 |
| Corner Radius (Decimal Inch) | 0.2360 |
| Overall Length (mm) | 24.60 |
| Overall Length (Decimal Inch) | 0.9690 |
| Series | Fix-Grip |
| Rake Angle | 15 |
| ISO Number | FGMA 630 IC07 |
| Manufacturers Catalog Number | 6403572 |
| Overall Width (mm) | 3.90 |
| Overall Width (Decimal Inch) | 0.1540 |
| Included Angle | 250 |
| Insert Thickness (Decimal Inch) | 0.1670 |
| Insert Thickness (mm) | 4-1/4 |
