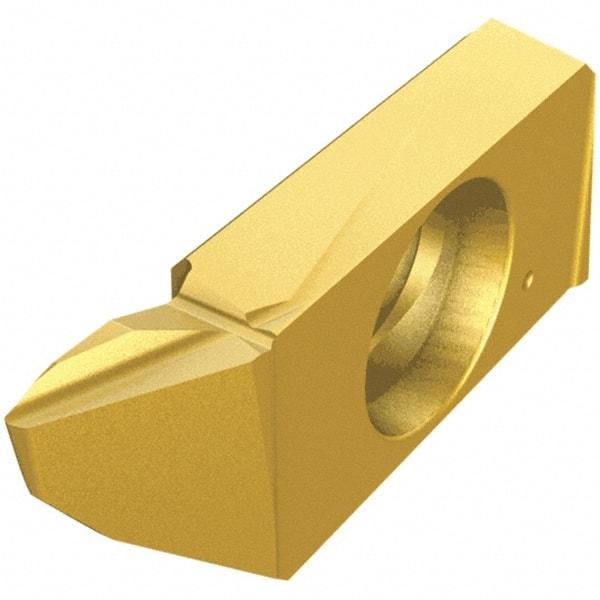

Iscar - SCIR22-BR10 Grade IC1008, 0.5mm Cutting Width Carbide Cutoff Insert - Right Hand Lead Angle, 0.1mm Corner Radius, TiAlN/TiN Finish
Item #: 46666848
Brand: Iscar
Model #: 6410053
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | SCIR |
| Insert Size | 22-BR10 |
| Lead Angle Direction | Right Hand |
| Lead Angle | 60 |
| Cutting Width (mm) | 0.50 |
| Cutting Width (Decimal Inch) | 0.0200 |
| Manufacturer's Grade | IC1008 |
| Coating | TiAlN/TiN |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Corner Radius (Decimal Inch) | 0.0040 |
| Corner Radius (mm) | 0.10 |
| Insert Hand | Right Hand |
| Manufacturers Catalog Number | SCIR 22-BR10-05K15 |
