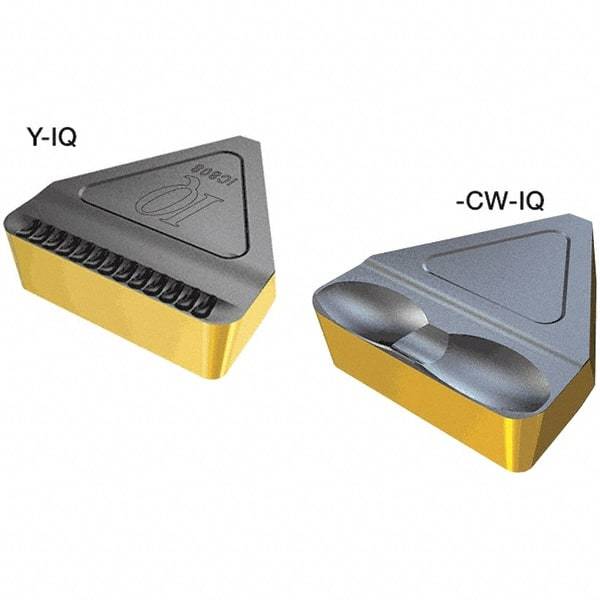

Iscar - 1415TIGER Grade IC808, 14mm Cutting Width Carbide Grooving Insert - 1.5mm Corner Radius, TiAlN/AlTiN/TiN Finish
Item #: 46666780
Brand: Iscar
Model #: 6410736
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | TIGER |
| Insert Size | 1415 |
| Material | Carbide |
| Cutting Width (mm) | 14.00 |
| Cutting Width (Decimal Inch) | 0.5510 |
| Material Grade | Fine-grained |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0590 |
| Corner Radius (mm) | 1.50 |
| Corner Radius (Decimal Inch) | 0.0590 |
| Coating Process | PVD |
| Overall Length (mm) | 16.10 |
| Overall Length (Decimal Inch) | 0.6340 |
| Series | DoveIQGrip |
| ISO Number | TIGER 1415-CW-IQ IC808 |
| Manufacturers Catalog Number | 6410736 |
| Included Angle | 61 |
| Insert Thickness (Decimal Inch) | 0.2030 |
| Insert Thickness (mm) | 5.1500 |
