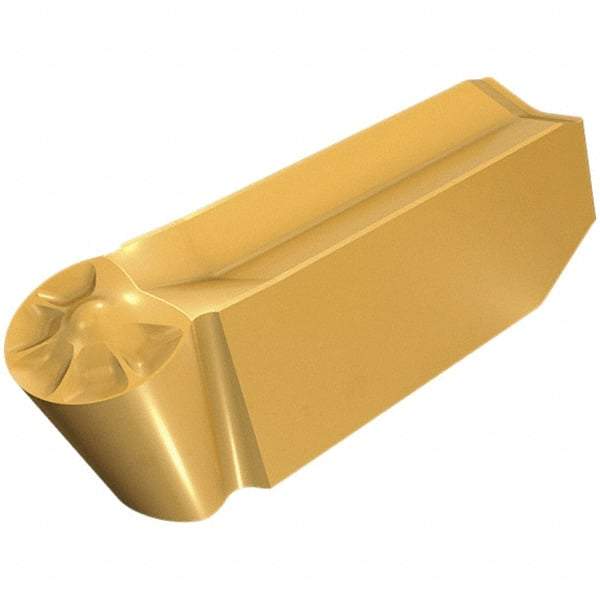

Iscar - 4.00-2.00GIPY Grade IC4, 4mm Cutting Width Carbide Grooving Insert - 2mm Corner Radius, Uncoated
Item #: 46666533
Brand: Iscar
Model #: 6411646
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | GIPY |
| Insert Size | 4.00-2.00 |
| Material | Carbide |
| Cutting Width (mm) | 4.00 |
| Cutting Width (Decimal Inch) | 0.1570 |
| Manufacturer's Grade | IC4 |
| Coating | Uncoated |
| Relief Angle | 7 |
| Multi-Use Application | Grooving; Parting; Turning |
| Maximum Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Series | Cut Grip |
| ISO Number | GIPY 4.00-2.00 IC4 |
| Manufacturers Catalog Number | 6411646 |
| Overall Width (mm) | 3.20 |
| Overall Width (Decimal Inch) | 0.1260 |
