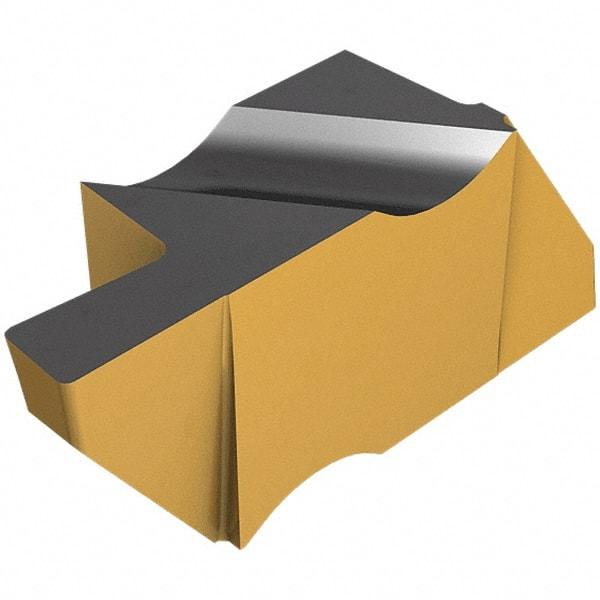

Iscar - 3125INGP Grade IC807, 3.18mm Cutting Width Carbide Grooving Insert - Right Hand, TiAlN/TiN Finish
Item #: 46666293
Brand: Iscar
Model #: 6411968
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | INGP |
| Insert Size | 3125 |
| Material | Carbide |
| Cutting Width (mm) | 3.18 |
| Cutting Width (Decimal Inch) | 0.1250 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Insert Hand | Right Hand |
| Relief Angle | 3 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Series | Notch-Grip |
| Rake Angle | 5 |
| ISO Number | INGP3125R IC807 |
| Manufacturers Catalog Number | 6411968 |
| Insert Thickness (Decimal Inch) | 0.1950 |
| Insert Thickness (mm) | 4.9500 |
