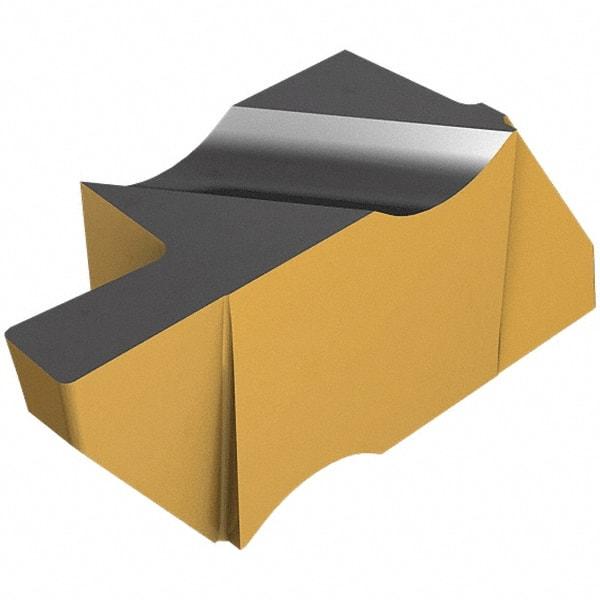

Iscar - 4189ING Grade IC807, 4.8mm Cutting Width Carbide Grooving Insert - Left Hand, TiAlN/TiN Finish
Item #: 46666061
Brand: Iscar
Model #: 6412065
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | ING |
| Insert Size | 4189 |
| Material | Carbide |
| Cutting Width (mm) | 4.80 |
| Cutting Width (Decimal Inch) | 0.1890 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Insert Hand | Left Hand |
| Relief Angle | 3 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Series | Notch-Grip |
| Rake Angle | 0 |
| ISO Number | ING4189L IC807 |
| Manufacturers Catalog Number | 6412065 |
| Insert Thickness (Decimal Inch) | 0.4530 |
| Insert Thickness (mm) | 11.5100 |
