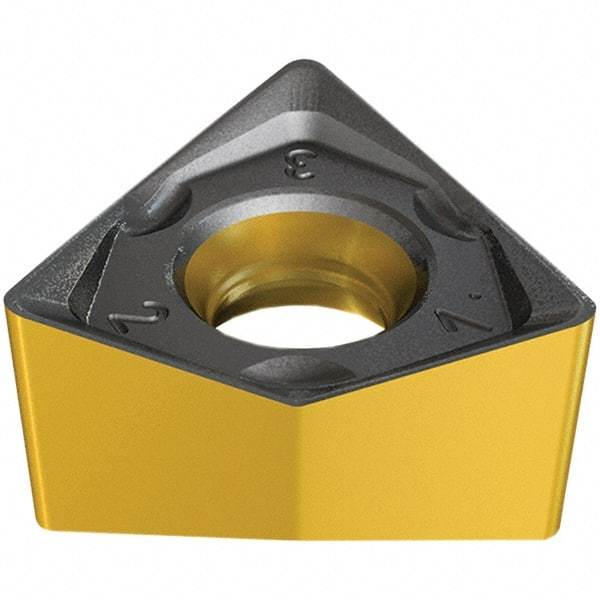

Iscar - H690 WNMU070520 MM Grade IC808 Carbide Milling Insert - TiAlN/AlTiN/TiN Finish, 5.7mm Thick, 11.5mm Inscribed Circle, 2mm Corner Radius
Item #: 46660072
Brand: Iscar
Model #: 3318212
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | H690 WNMU |
| Insert Size | 070520 |
| Material | Carbide |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC808 |
| Coating | TiAlN/AlTiN/TiN |
| Length (mm) | 7.30 |
| Length (Decimal Inch) | 0.2870 |
| Inscribed Circle (mm) | 11.50 |
| Inscribed Circle (Decimal Inch) | 0.4530 |
| Thickness (mm) | 5.70 |
| Thickness (Decimal Inch) | 0.2240 |
| Corner Radius (Decimal Inch) | 0.0790 |
| Corner Radius (mm) | 2.00 |
| Coating Process | PVD |
| Shape | Triangle |
| Insert Hand | Neutral |
| Chipbreaker | MM |
| Maximum Depth of Cut (mm) | 7.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.2760 |
| Cutting Edge Style | Helical |
| Manufacturers Catalog Number | H690 WNMU070520PNN-MM |
| ISO Number | H690 WNMU070520PNN-MM |
| ANSI Number | H690 WNMU070520PNN-MM |
