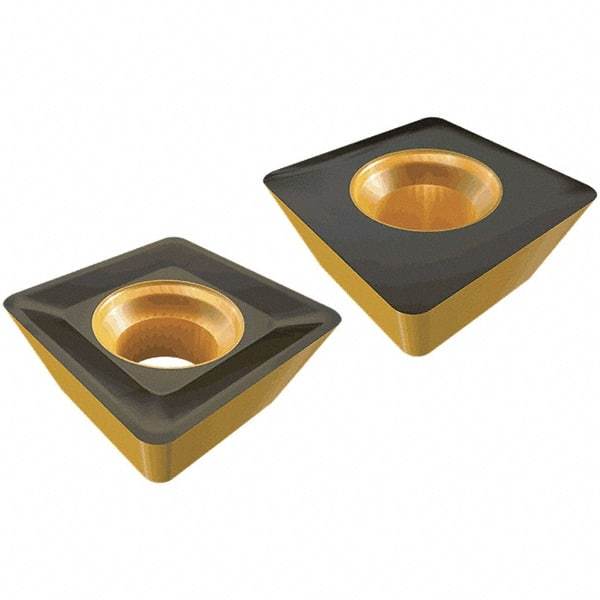

Iscar - SDHX120508 N Grade IC5820 Carbide Milling Insert - Al2O3 Finish, 4.94mm Thick, 1/32" Corner Radius
Item #: 46659082
Brand: Iscar
Model #: 3305229
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SDHX |
| Insert Size | 120508 |
| Material | Carbide |
| Manufacturer's Grade | IC5820 |
| Coating | Al2O3 |
| Length (mm) | 12.70 |
| Length (Decimal Inch) | 0.5000 |
| Thickness (mm) | 4.94 |
| Thickness (Decimal Inch) | 0.1940 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0315 |
| Corner Radius (mm) | 0.80 |
| Relief Angle | 15.000 |
| Coating Process | CVD |
| Shape | Square |
| Chipbreaker | N |
| Manufacturers Catalog Number | SDHX 120508-PD-N |
| ISO Number | SDHX 120508-PD-N |
| ANSI Number | SDHX 120508-PD-N |
