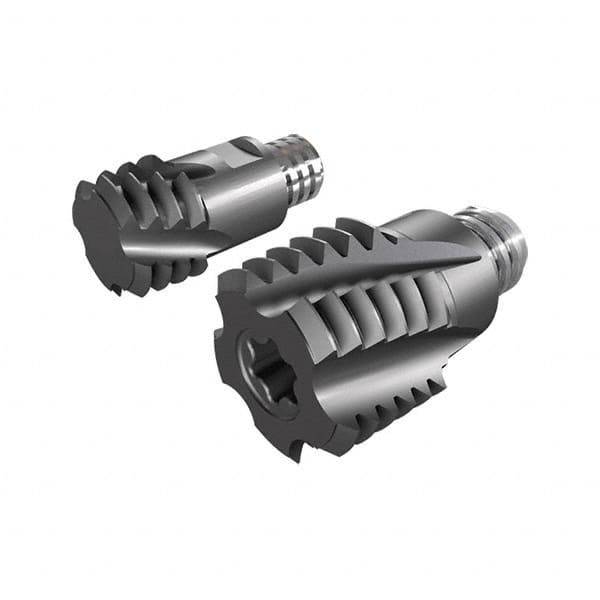

Iscar - MT-ISO-MM Grade IC908 Carbide Thread Milling Tip Insert - TiAlN Finish, 4 Flutes, 20mm Cutting Diam, 12mm Depth of Cut, 21mm Extension
Item #: 46653507
Brand: Iscar
Model #: 3311825
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster; SolidThread |
| Milling Tip Style | MT-ISO-MM |
| Milling Tip Type | Thread Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 20.00 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 12.00 |
| Number of Flutes | 4 |
| Coating | TiAlN |
| Milling Tip Full Description | Internal ISO Metric Thread |
| Coating Process | PVD |
| Extension From Holder (mm) | 21.00 |
| Thread Size | T10 |
| Pitch (mm) | 3.00 |
| Manufacturers Catalog Number | MT20D12 3.0ISO-MMTT10 |
