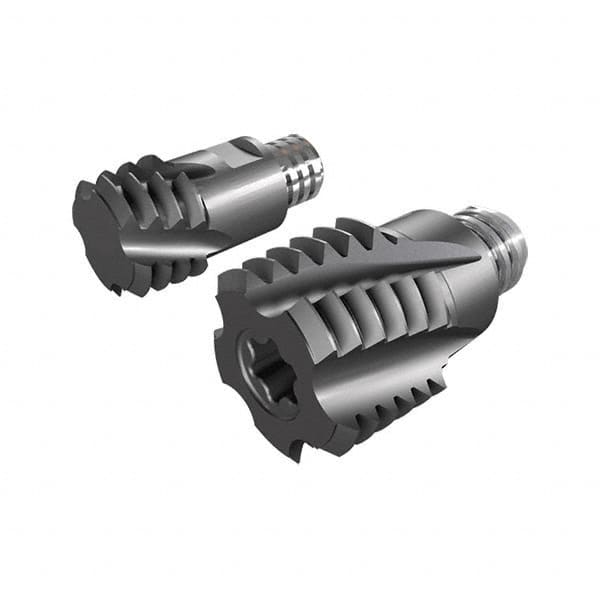

Iscar - MT-ISO-MM Grade IC908 Carbide Thread Milling Tip Insert - TiAlN Finish, 5 Flutes, 12mm Cutting Diam, 9mm Depth of Cut, 14.3mm Extension
Item #: 46652996
Brand: Iscar
Model #: 3317689
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster; SolidThread |
| Milling Tip Style | MT-ISO-MM |
| Milling Tip Type | Thread Mill |
| Material | Carbide |
| Cutting Diameter (mm) | 12.00 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Depth of Cut (mm) | 9.00 |
| Number of Flutes | 5 |
| Coating | TiAlN |
| Milling Tip Full Description | Internal ISO Metric Thread |
| Coating Process | PVD |
| Extension From Holder (mm) | 14.30 |
| Thread Size | T06 |
| Pitch (mm) | 1.00 |
| Manufacturers Catalog Number | MT12E9 1.0ISO-MMTT06 |
