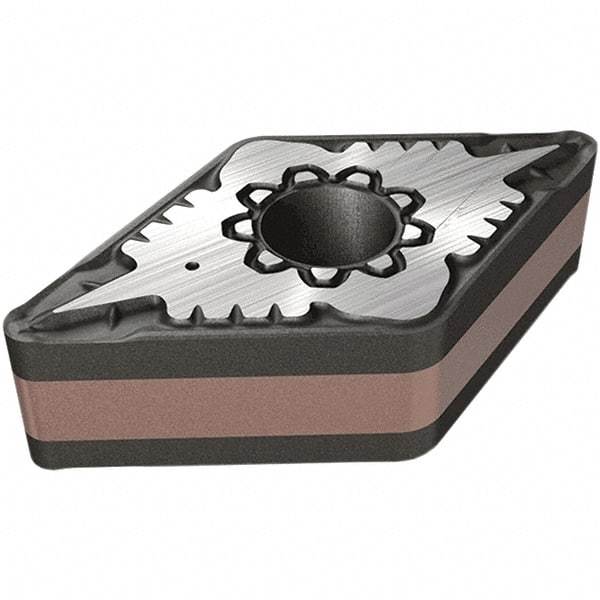

Iscar - DNMG432 F3M Grade IC830 Carbide Turning Insert - TiAlN/AlTiN/TiN Finish, 55° Diamond, 12.7mm Inscr Circle, 4.76mm Thick, 0.8mm Corner Radius
Item #: 46649505
Brand: Iscar
Model #: 3328967
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | DNMG |
| Insert Size | 432 |
| Material | Carbide |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6100 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1870 |
| Thickness (mm) | 4.76 |
| Corner Radius (mm) | 0.80 |
| Corner Radius (Decimal Inch) | 0.0310 |
| Manufacturer's Grade | IC830 |
| Coating | TiAlN/AlTiN/TiN |
| Chip Breaker | F3M |
| ISO Number | DNMG 432-F3M |
| Rake | Positive |
| Proprietary Coating Designation | SumoTec |
| Coating Process | PVD |
| Manufacturers Catalog Number | 3328967 |
| Primary Workpiece Material | M; P; S |
| Secondary Workpiece Material | None |
| Included Angle | 55 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 1.50 |
| Maximum Depth of Cut (Decimal Inch) | 0.0590 |
| Multi Use Application | Turning |
| Shape | Diamond |
