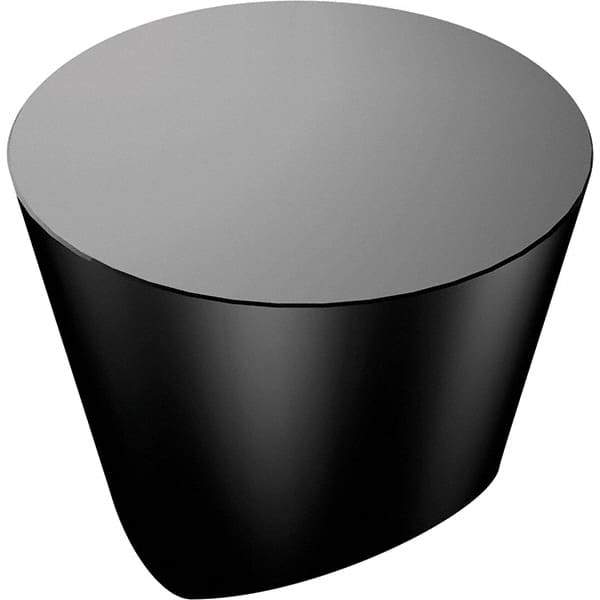

Sandvik Coromant - RPGX0907 Grade 6230 Ceramic Turning Insert - Uncoated, Round, 9.53mm Inscr Circle, 7.94mm Thick, 4.7625mm Corner Radius
Item #: 46613428
Brand: Sandvik Coromant
Model #: 7413943
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | RPGX |
| Insert Size | 0907 |
| Material | Ceramic |
| Inscribed Circle (mm) | 9.53 |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Thickness (Decimal Inch) | 0.3125 |
| Thickness (mm) | 7.94 |
| Corner Radius (mm) | 4.7625 |
| Corner Radius (Decimal Inch) | 0.1875 |
| Manufacturer's Grade | 6230 |
| Coating | Uncoated |
| ISO Number | RPGX090700T01020 6230 |
| Relief Angle | 11 |
| Manufacturers Catalog Number | RPGX35T0320 6230 |
| Primary Workpiece Material | S |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Series | T-Max |
| Shape | Round |
