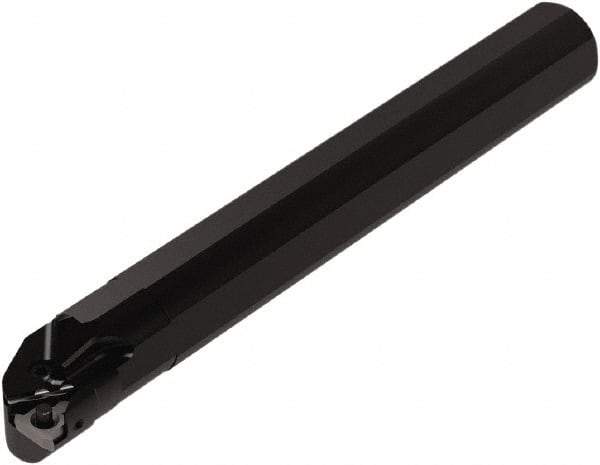

Seco - Internal Thread, Left Hand Cut, 1.22" Shank Width x 1.18" Shank Height Indexable Threading Toolholder - 9.84" OAL, 22NR Insert Compatibility, PNL Toolholder, Series Snap Tap
Item #: 46153573
Brand: Seco
Model #: 03006948
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.2200 |
| Shank Height (Decimal Inch) | 1.1800 |
| Overall Length (Decimal Inch) | 9.8400 |
| Insert Compatibility | 22NR |
| Series | Snap Tap |
| Toolholder Style | PNL |
| Through Coolant | No |
| Multi-Use Tool | No |
| Insert Holding Method | Lever Lock |
| Back of Bar to Cutting Edge (mm) | 38.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8400 |
| Head Length (mm) | 42.00 |
| Shank Length (Decimal Inch) | 8.1900 |
