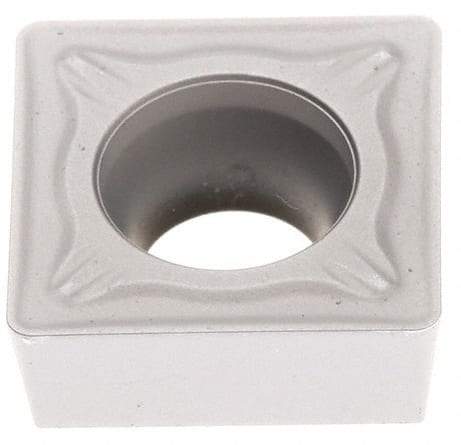

Seco - SCMT32.52 M5 Grade TP1501 Carbide Turning Insert - TiCN/Al2O3/TiCN Finish, Square, 3/8" Inscr Circle, 5/32" Thick, 1/32" Corner Radius
Item #: 46149175
Brand: Seco
Model #: 03169503
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | SCMT |
| Insert Size | 32.52 |
| Material | Carbide |
| Length (Decimal Inch) | 0.3700 |
| Inscribed Circle (Inch) | 3/8 |
| Thickness (Inch) | 5/32 |
| Corner Radius (Inch) | 1/32 |
| Manufacturer's Grade | TP1501 |
| Coating | TiCN/Al2O3/TiCN |
| Material Grade | C6 |
| Chip Breaker | M5 |
| Insert Length (Decimal Inch) | 0.3700 |
| Hole Diameter (Decimal Inch) | 0.1800 |
| Rake | Positive |
| Rake Angle | 17 |
| Relief Angle | 7 |
| Coating Process | CVD |
| Cutting Direction | Neutral |
| Insert Hand | Neutral |
| Insert Holding Method | Screw |
| Cutting Edge Style | Honed |
| FullRadius | No |
| Multi Use Application | Turning |
| MultiUseTool | Yes |
| Shape | Square |
