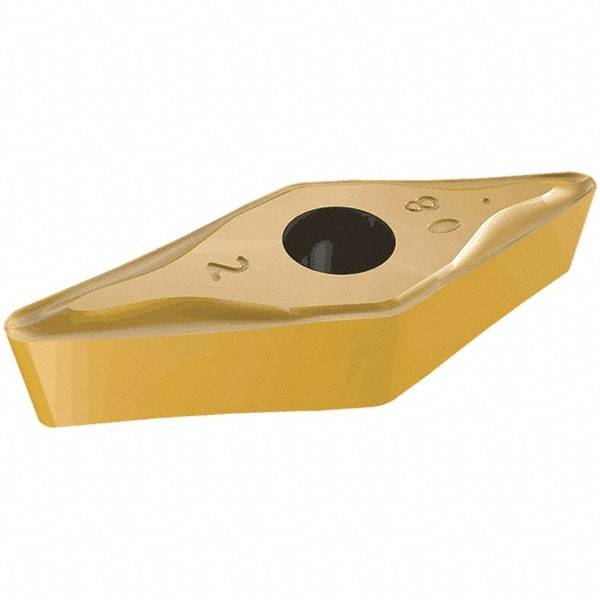

Iscar - VNMG2.5-0 FNF Grade IC20N Carbide Turning Insert - Uncoated, 35° Diamond, 7.15mm Inscr Circle, 3.97mm Thick, 0.2mm Corner Radius
Item #: 46084141
Brand: Iscar
Model #: 6166996
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | VNMG |
| Insert Size | 2.5-0 |
| Material | Carbide |
| Length (mm) | 12.40 |
| Length (Decimal Inch) | 0.4880 |
| Inscribed Circle (mm) | 7.15 |
| Inscribed Circle (Decimal Inch) | 0.2810 |
| Thickness (Decimal Inch) | 0.1560 |
| Thickness (mm) | 3.97 |
| Corner Radius (mm) | 0.20 |
| Corner Radius (Decimal Inch) | 0.0080 |
| Manufacturer's Grade | IC20N |
| Coating | Uncoated |
| Chip Breaker | FNF |
| ISO Number | VNMG 2.5-0-FNF |
| Rake | Positive |
| Manufacturers Catalog Number | 6166996 |
| Primary Workpiece Material | M; P |
| Secondary Workpiece Material | None |
| Included Angle | 35 |
| Insert Hand | Right Hand |
| Maximum Depth of Cut (mm) | 3.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1180 |
| Multi Use Application | Turning |
| Shape | Diamond |
