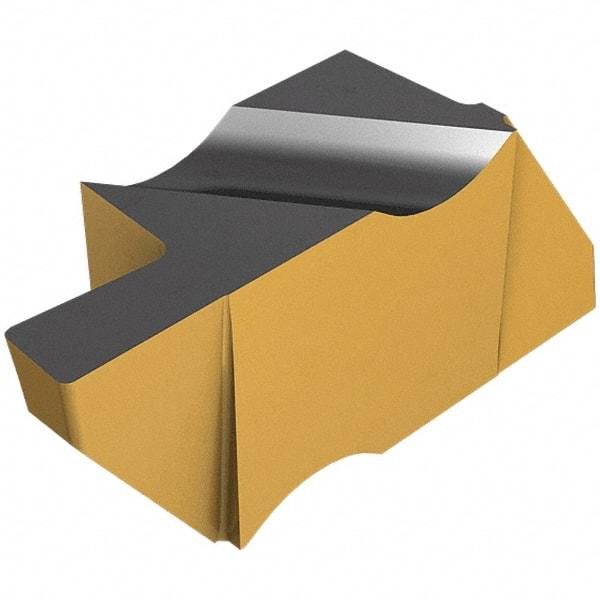

Iscar - 3062INGP Grade IC807, 1.57mm Cutting Width Carbide Grooving Insert - Left Hand, TiAlN/TiN Finish
Item #: 46057626
Brand: Iscar
Model #: 6411963
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | INGP |
| Insert Size | 3062 |
| Material | Carbide |
| Cutting Width (mm) | 1.57 |
| Cutting Width (Decimal Inch) | 0.0620 |
| Material Grade | Submicron |
| Manufacturer's Grade | IC807 |
| Coating | TiAlN/TiN |
| Insert Hand | Left Hand |
| Relief Angle | 3 |
| Multi-Use Application | Grooving; Parting; Turning |
| Coating Process | PVD |
| Series | Notch-Grip |
| Rake Angle | 5 |
| ISO Number | INGP3062L IC807 |
| Manufacturers Catalog Number | 6411963 |
| Insert Thickness (Decimal Inch) | 0.3440 |
| Insert Thickness (mm) | 8.7400 |
