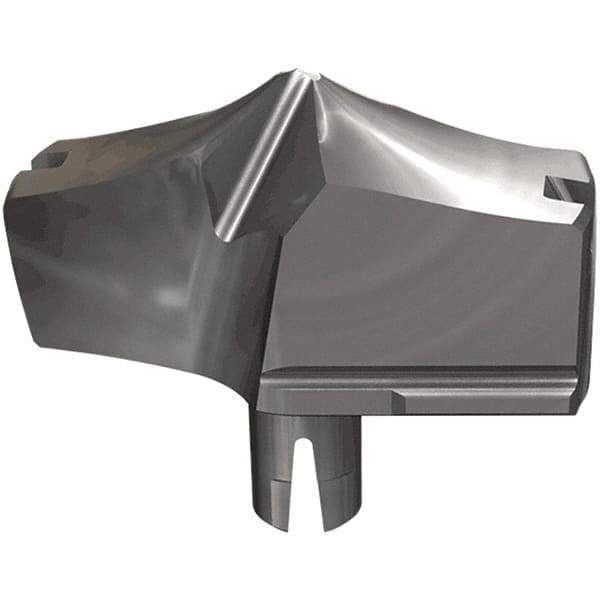

Iscar - Series HFP-IQ, 39.2mm Diam Grade IC908 Replaceable Drill Tip - Carbide, TiAlN/TiN Finish, 39 Seat Size
Item #: 46014031
Brand: Iscar
Model #: 3310331
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
TiAlN/TiN is a multilayer coating that combines the high hardness of TiN and the heat resistance of TiAlN. It is commonly used on softer materials in general purpose applications.
| Product Specifications | |
|---|---|
| Diameter (mm) | 39.20 |
| Diameter (Decimal Inch) | 1.5430 |
| Material | Carbide |
| Material Grade | Submicron |
| Manufacturer's Grade | IC908 |
| Series | HFP-IQ |
| Coating | TiAlN/TiN |
| Insert Seat Size | 39 |
| Through Coolant | No |
| Coating Process | PVD |
| Height (mm) | 22.00 |
| Height (Decimal Inch) | 0.8660 |
