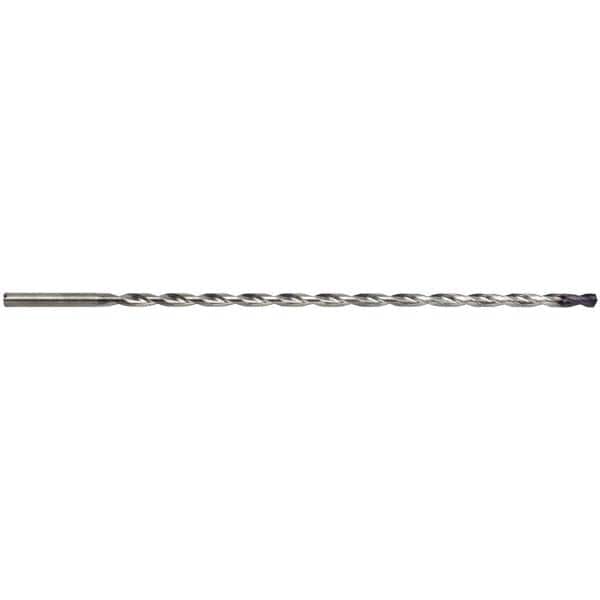

Extra Length Drill Bit: 0.1575″ Dia, 135 °, Solid Carbide TiAlN Finish, Spiral Flute, Straight-Cylindrical Shank, Series 6512
Item #: 45930773
Brand: Guhring
Model #: 9065120040000
Product Specifications
| Drill Bit Size (mm) | 4.00 |
| Overall Length (mm) | 156.00 |
| Flute Length (mm) | 116.00 |
| Tool Material | Solid Carbide |
| Coating/Finish | TiAlN |
| Drill Point Angle | 135 |
| Shank Type | Straight-Cylindrical |
| Coolant Through | Yes |
| Flute Type | Spiral |
| Series | 6512 |
| Point Type | Standard |
| Cutting Direction | Right Hand |
| Tool Application | Deep Hole Drilling |
| Spiral Type | Regular |
| Drill Bit Diameter Tolerance | +0.000 to -0.012 mm |
| Number Of Flutes | 2 |
| Web Thinning | Web-Thinned |
| Web Configuration | Tapered |
| Primary Workpiece Material | Stainless Steel; Cast Iron; Steel |
| Primary Workpiece Material Code | P; K; M |
| Secondary Workpiece Material | Aluminum; Titanium Alloy |
| Secondary Workpiece Material Code | S; H; N |
| Standards | California PROP 65 |
| Drill Bit Grade | High Performance |
| Drill Bit Size (Decimal Inch) | 0.1575 |
| Shank Diameter (mm) | 6.00 |
| Shank Length (mm) | 36.00 |
| Flute By Diameter Ratio | 25xD |
| Maximum Drilling Depth (Decimal Inch) | 4.3310 |
| Maximum Drilling Depth (mm) | 110.00 |
| Material Grade | Submicron |
