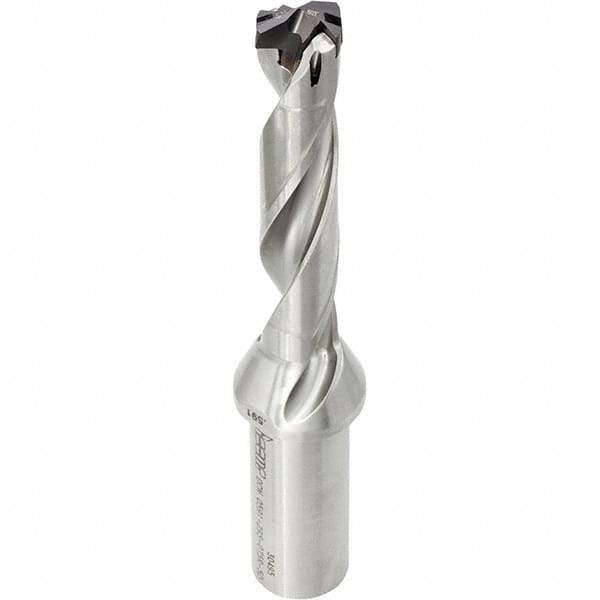

Iscar - 7mm to 7.4mm Diam, 1.5xD, 11mm Max Depth, 12mm Shank Diam, 70.1mm OAL, Replaceable-Tip Drill - FCP, ICK, ICK-2M, ICM, ICN, ICP, iCP-2M Insert, 7 Seat Size, 45873262 Toolholder, Series SumoCham
Item #: 45873262
Brand: Iscar
Model #: 3202935
Exact Tooling IR#: 04
Features and Benefits
Weldon flats are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | SumoCham |
| Minimum Drill Diameter (mm) | 7.00 |
| Maximum Drill Diameter (mm) | 7.40 |
| Drill Depth by Diameter Ratio | 1.5xD |
| Maximum Drill Depth (mm) | 11.00 |
| Shank Diameter (mm) | 12.00 |
| Insert Style | FCP; ICK; ICK-2M; ICM; ICN; ICP; iCP-2M |
| Insert Seat Size | 7 |
| Toolholder Style | DCN |
| Through Coolant | Through Coolant |
| Shank Type | Weldon Flat |
| Body Length (mm) | 25.10 |
| Overall Length (mm) | 70.10 |
| Shank Length (mm) | 45.00 |
