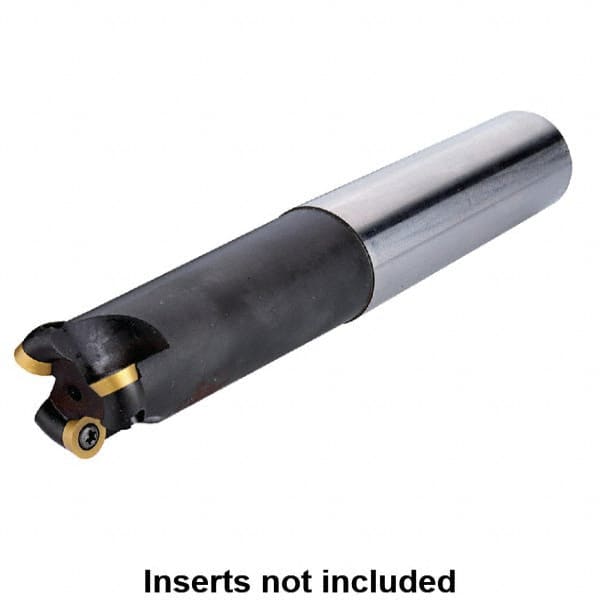

Kennametal - 32mm Cutting Diam, 32mm Shank Diam, 1.2598" Max Depth of Cut, Straight Shank Indexable Copy End Mill - 3 Inserts, RD.X 1003.. Insert
Item #: 45832250
Brand: Kennametal
Model #: 1888454
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Cylindrical |
| Shank Diameter (mm) | 32.00 |
| Shank Diameter (Decimal Inch) | 1.2598 |
| Number of Cutter Inserts | 3 |
| Insert Style | RD.X 1003.. |
| Series | KDM |
| Overall Length (mm) | 200.00 |
| Overall Length (Decimal Inch) | 7.8740 |
| Insert Diameter (mm) | 10.00 |
| Insert Diameter (Decimal Inch) | 0.3937 |
| Insert Holding Method | Screw |
| Weldon Flat | No |
| Number of Flutes | 3 |
| Minimum Cutting Diameter (mm) | 22.00 |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Shank Length (mm) | 110.00 |
| Shank Length (Decimal Inch) | 4.3307 |
| Maximum Cutting Diameter (Decimal Inch) | 1.2598 |
