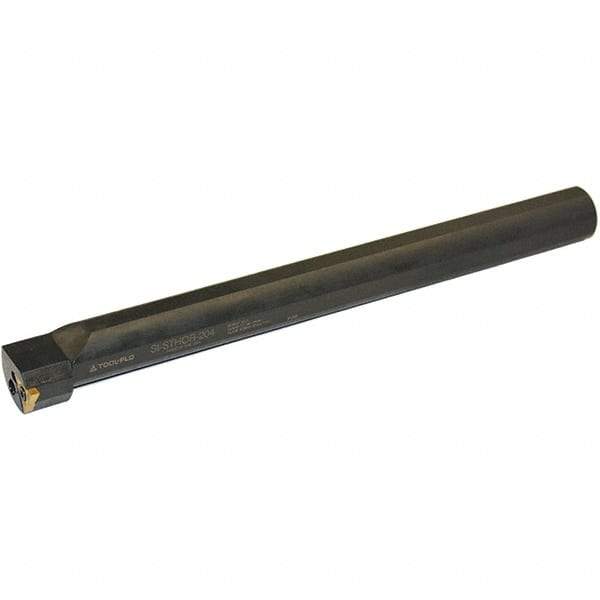

Tool-Flo - Internal Thread, Left Hand Cut, 1" Shank Width x 1" Shank Height Indexable Threading Toolholder - 14" OAL, T.MC 32 Insert Compatibility, SI-STHO Toolholder, Series On-Edge
Item #: 45790227
Brand: Tool-Flo
Model #: 97501648
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Shank Height (Decimal Inch) | 1.0000 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Insert Compatibility | T.MC 32 |
| Series | On-Edge |
| Toolholder Style | SI-STHO |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Screw or Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.6870 |
| Maximum Depth of Cut (Decimal Inch) | 0.1200 |
| Minimum Bore Diameter (Decimal Inch) | 1.3830 |
| Insert Inscribed Circle (Decimal Inch) | 0.3750 |
