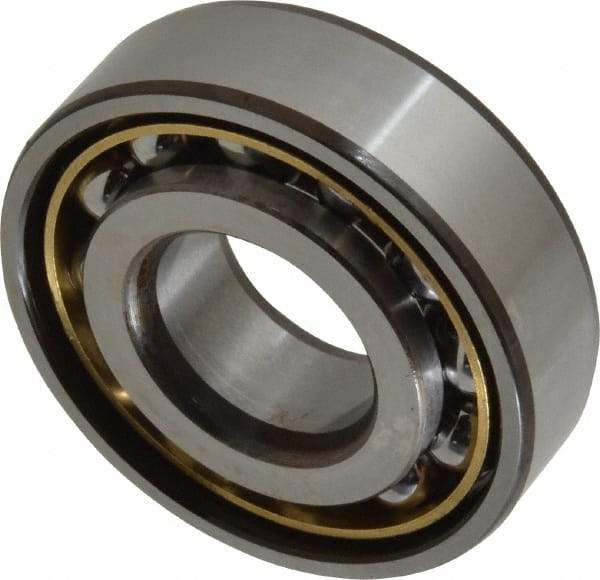

SKF - 20mm Bore Diam, 47mm OD, Open Angular Contact Radial Ball Bearing - 14mm Wide, 1 Row, Round Bore, 8,300 Lb Static Capacity, 14,000 Lb Dynamic Capacity
Item #: 45668811
Brand: SKF
Model #: 7204 BECBY
Exact Tooling IR#: 04
Features and Benefits
Open Bearing design without seals or shields and are intended to be lubricated in place and periodically maintained
Round bore bearings are designed for mounting on round shafts.
| Product Specifications | |
|---|---|
| Type | Angular Contact |
| Style | Open |
| Bore Diameter (mm) | 20.00 |
| Outside Diameter (mm) | 47.00 |
| Outside Diameter (Decimal Inch) | 1.8500 |
| Width (Decimal Inch) | 0.5500 |
| Width (mm) | 14.00 |
| Flange Type | Without Flange |
| Number of Rows | 1 |
| Bore Type | Round |
| Contact Angle | 40 |
| Snap Ring Included | Without Snap Ring |
| Static Load Capacity (Lb.) | 8300 |
| Dynamic Load Capacity (Lb.) | 14000 |
| Cage Material | Pressed brass |
| Maximum RPM | 17000 |
