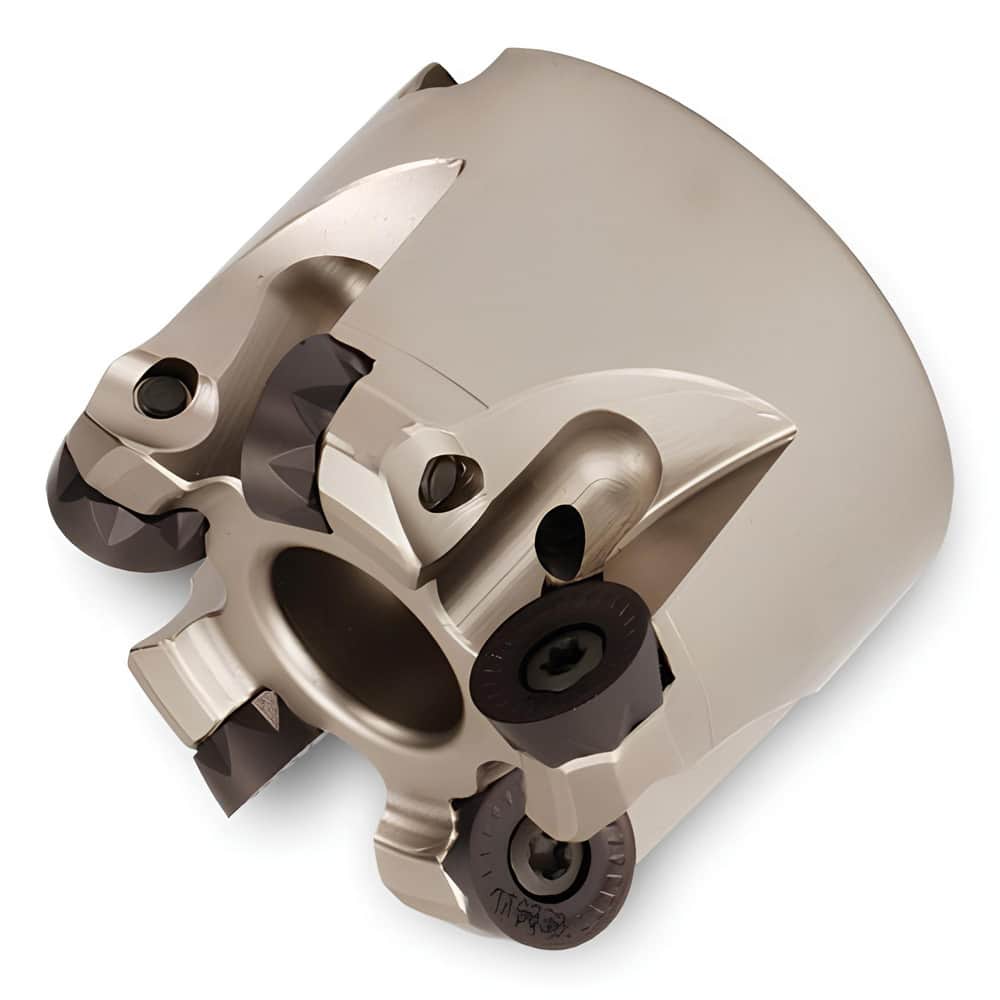

Indexable Copy Face Mills; Maximum Depth Of Cut: 0.2500 in; Compatible Insert Size Code: RCKX1204; Arbor Hole Diameter (mm): 0.75; Maximum Ramping Angle: 7.5 ™; Overall Height (mm): 1.5700 in; Series: 5W6J; Number of Cutter Inserts: 5; Cutter Style: 5W6J
Item #: 45469004
Brand: Ingersoll Cutting Tools
Model #: 3026026
Product Specifications
| Maximum Depth Of Cut | 0.2500 in |
| Compatible Insert Size Code | RCKX1204 |
| Arbor Hole Diameter (mm) | 0.75 |
| Maximum Ramping Angle | 7.5 ? |
| Overall Height (mm) | 1.5700 in |
| Series | 5W6J |
| Number of Cutter Inserts | 5 |
| Cutter Style | 5W6J |
| Keyway Width | 7.9200 |
| Tool Application | Pocketing; Ramping |
| Tool Performance | General Purpose |
| Primary Workpiece Material | Universal |
| Through Coolant | Normal Pressure |
| Insert Holding Method | Screw |
| Keyway Width (Decimal Inch) | 7.9200 |
| Cutting Direction | Right Hand |
| Maximum Cutting Diameter (Decimal Inch) | 2.0000 in |
| Minimum Cutting Diameter (Decimal Inch) | 1.5000 in |
