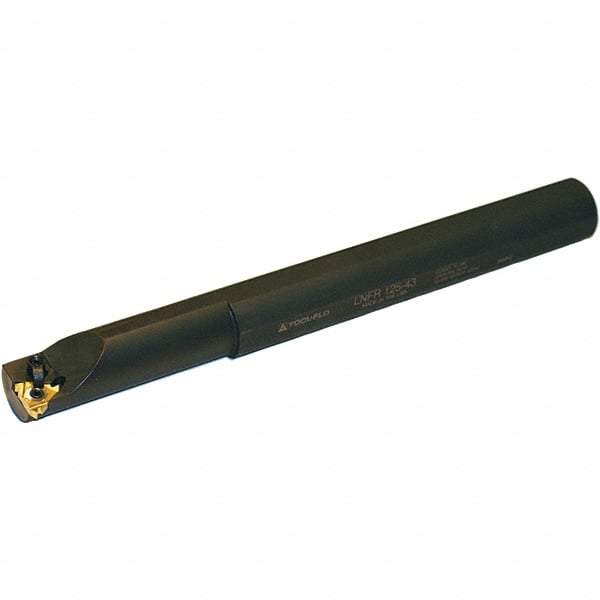

Tool-Flo - Internal Thread, Left Hand Cut, 1-1/2" Shank Width x 1-1/2" Shank Height Indexable Threading Toolholder - 14" OAL, L53 Insert Compatibility, LNF Toolholder, Series Laydown
Item #: 45423522
Brand: Tool-Flo
Model #: 94107262
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Left Hand |
| Shank Width/Diameter (Decimal Inch) | 1.5000 |
| Shank Width/Diameter (Inch) | 1-1/2 |
| Shank Height (Inch) | 1-1/2 |
| Shank Height (Decimal Inch) | 1.5000 |
| Overall Length (Decimal Inch) | 14.0000 |
| Overall Length (Inch) | 14 |
| Insert Compatibility | L53 |
| Series | Laydown |
| Toolholder Style | LNF |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Grooving; Threading |
| Insert Holding Method | Pin & Clamp |
| Center to Cutting Edge (Decimal Inch) | 0.7500 |
| Maximum Depth of Cut (Decimal Inch) | 0.1500 |
| Head Length (Inch) | 3-3/4 |
| Head Length (Decimal Inch) | 3.7500 |
| Minimum Bore Diameter (Decimal Inch) | 1.5000 |
| Insert Inscribed Circle (Inch) | 5/8 |
| Insert Inscribed Circle (Decimal Inch) | 0.6250 |
