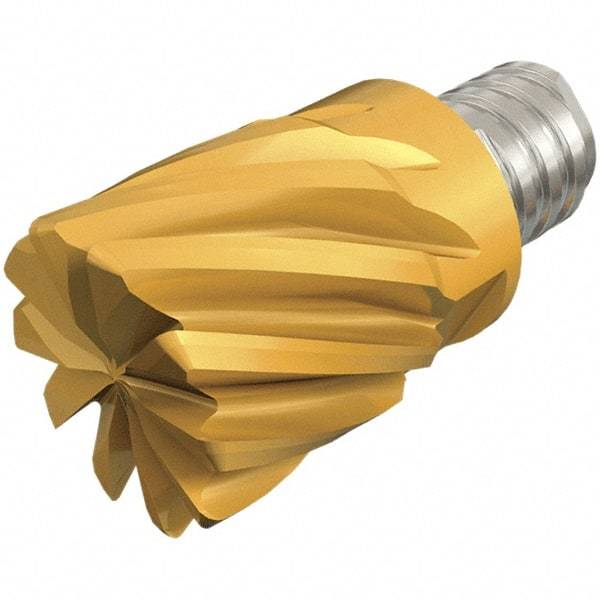

Iscar - MM EC Grade IC908 Carbide End Milling Tip Insert - TiAlN Finish, 10 Flutes, 3/4" Cutting Diam, 0.62" Depth of Cut, 1" Extension, 1/16" Cnr Rad, 45° Helix
Item #: 45393436
Brand: Iscar
Model #: 5622257
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat resistant and used for high speed applications. It is commonly used on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
Titanium aluminum nitride (TiAlN) has a higher hardness than TiN and TiCN. It is extremely heat-resistant and used for high-speed applications on stainless steels, nickel and titanium alloys.
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Milling Tip Style | MM EC |
| Milling Tip Type | End Mill |
| Material | Carbide |
| Cutting Diameter (Decimal Inch) | 0.7500 |
| Manufacturer's Grade | IC908 |
| Depth of Cut (Decimal Inch) | 0.6200 |
| Number of Flutes | 10 |
| Coating | TiAlN |
| Milling Tip Full Description | End Mill |
| Corner Radius (Decimal Inch) | 0.0620 |
| Coating Process | PVD |
| Extension From Holder (Decimal Inch) | 1.0000 |
| Thread Size | T12 |
| Helix Angle | 45 |
