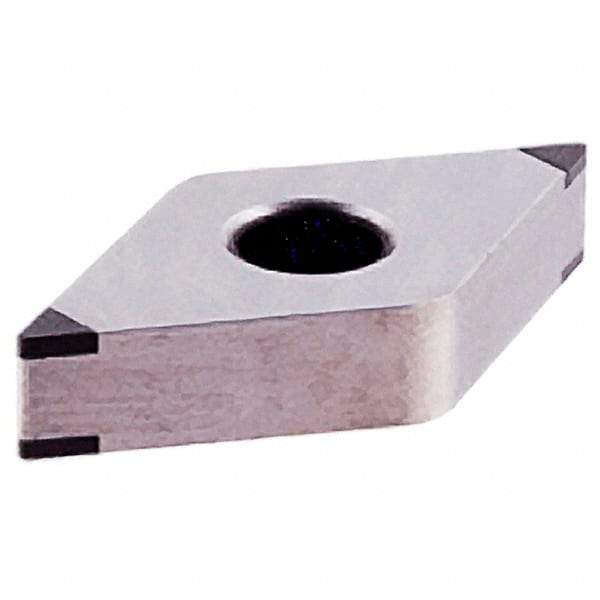

Iscar - DNGG433 M4HM Grade IB25HA PCBN Turning Insert - AlTiN Finish, 55° Diamond, 1/2" Inscr Circle, 3/16" Thick, 3/64" Corner Radius
Item #: 45388089
Brand: Iscar
Model #: 6856894
Exact Tooling IR#: 04
Features and Benefits
Polycrystalline cubic boron nitride (PCBN) is similar to diamond. It is commonly used on hardened steels, cast iron, carbide, nickel alloys and hard ferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | DNGG |
| Insert Size | 433 |
| Material | PCBN |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 3/16 |
| Thickness (Decimal Inch) | 0.1875 |
| Corner Radius (Inch) | 3/64 |
| Corner Radius (Decimal Inch) | 0.0469 |
| Manufacturer's Grade | IB25HA |
| Coating | AlTiN |
| Chip Breaker | M4HM |
| Relief Angle | 0 |
| Coating Process | PVD |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 1.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.0394 |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
