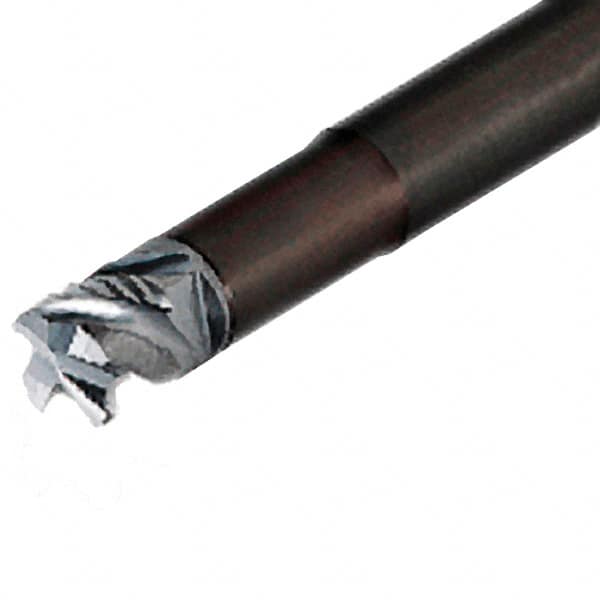

Iscar - Multimaster 16mm 90° Shank Milling Tip Insert Holder & Shank - T10 Neck Thread, 90mm OAL, Tungsten MM S-A Tool Holder
Item #: 45383288
Brand: Iscar
Model #: 3104442
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Series | Multimaster |
| Shank Type | 90 Degree Shank |
| Shank Diameter (mm) | 16.00 |
| Shank Diameter (Decimal Inch) | 0.6300 |
| Neck Thread Size | T10 |
| Toolholder Material | Tungsten |
| Overall Length (mm) | 90.00 |
| Overall Length (Decimal Inch) | 3.5433 |
| Through Coolant | Through Coolant |
| Weldon Flat | No |
| Head Length (Decimal Inch) | 1.5040 |
| Effective Length (mm) | 40.00 |
| Effective Length (Decimal Inch) | 1.5748 |
| Milling Tip Style | BCM-MM, HCE-MM, HCM-MM, HM90 E90A-MM-10, HP E90AN-MM-07, MM EB, MM EC-4, MM HBR, MM HCD, MM HCR |
| Shank Shape | Straight |
| Toolholder Style | MM S-A |
