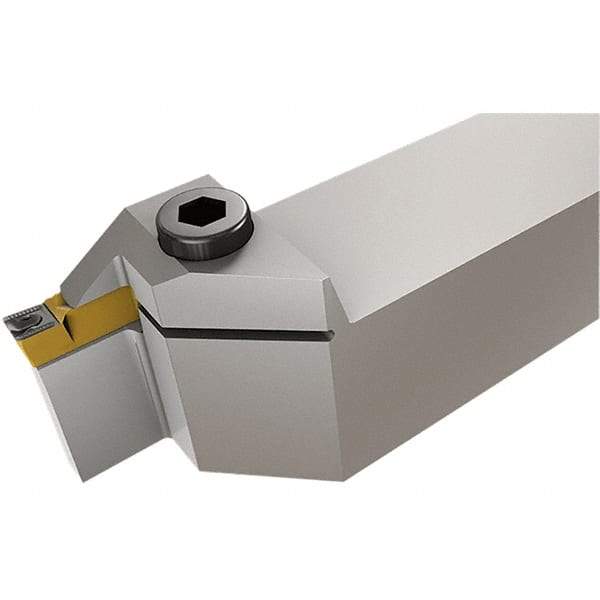

Iscar - HELI, External, Left Hand, 12mm Max Depth of Cut, 4 to 4.76mm Groove Width, Indexable Grooving Tool Holder - DG.., GRIP Insert Compatibility, 20mm Shank Height, 20mm Shank Width, 135mm OAL
Item #: 45378767
Brand: Iscar
Model #: 2500511
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | NonFace Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 12.00 |
| Minimum Groove Width (mm) | 4.00 |
| Maximum Groove Width (mm) | 4.76 |
| Overall Length (mm) | 135.00 |
| Toolholder Style | HELI |
| Insert Compatibility | DG..; GRIP |
| Shank Height (mm) | 20.00 |
| Shank Width/Diameter (mm) | 20.00 |
| Series | Heli-Grip |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Parting; Turning |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 18.40 |
| Head Length (mm) | 29.00 |
| Shank Length (mm) | 106.00 |
| Complete Insert Compatibility | DGN-UT/UA; DGN/DGNC/DGNM-C; DGN/DGNM-J/JS/JT; DGR/L-C DGRC/LC-C; DGR/L-J/JS; GRIP; GRIP (Full Radius) |
