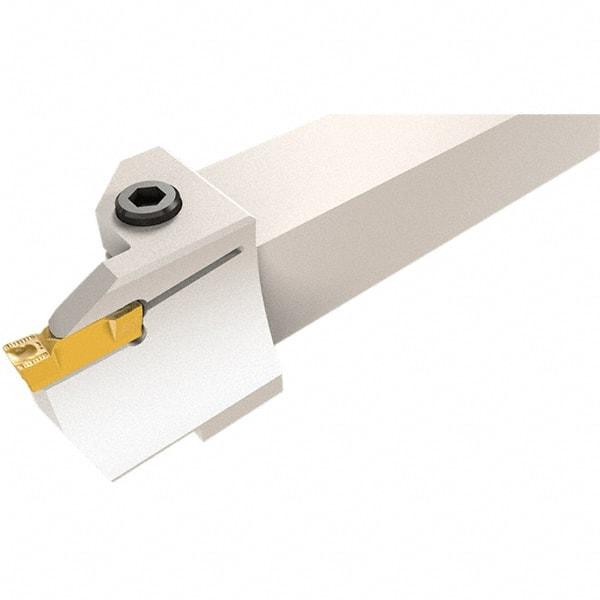

Iscar - HFH, External, Left Hand, 17mm Max Depth of Cut, 6mm Max Groove Width, Indexable Grooving Tool Holder - HFP.., HGPL Insert Compatibility, 25mm Shank Height, 25mm Shank Width, 150mm OAL
Item #: 45378734
Brand: Iscar
Model #: 2500281
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Toolholder Type | Face Grooving |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (mm) | 17.00 |
| Maximum Groove Width (mm) | 6.00 |
| Overall Length (mm) | 150.00 |
| Toolholder Style | HFH |
| Insert Compatibility | HFP..; HGPL |
| Shank Height (mm) | 25.00 |
| Shank Width/Diameter (mm) | 25.00 |
| Series | Heliface |
| Through Coolant | Non Coolant Through |
| Multi-Use Tool | Yes |
| Multi-Use Application | Facing |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (mm) | 26.40 |
| Maximum Groove Outside Diameter (mm) | 38.00 |
| Minimum Axial Groove Inside Diameter(mm) | 30.00 |
| Head Height (mm) | 35.00 |
| Head Length (mm) | 36.00 |
| Shank Length (mm) | 114.00 |
| Complete Insert Compatibility | HFPR/L; HFPR/L (Full Radius); HGPL |
