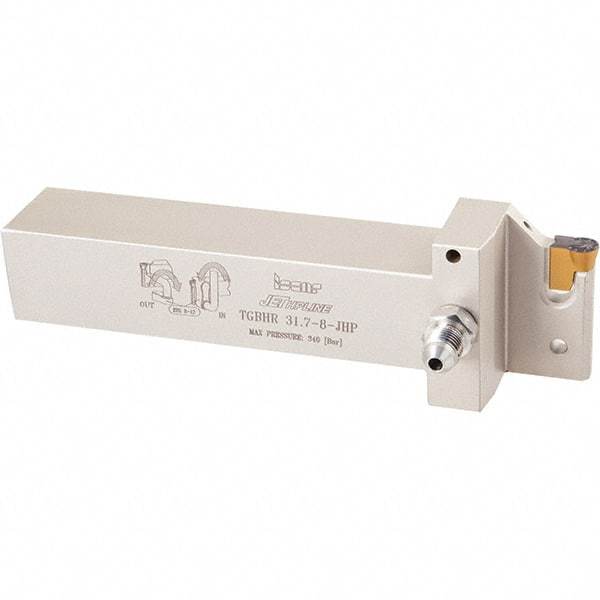

Iscar - External Thread, 0.98" Max Depth of Cut, 6" OAL, Left Hand Indexable Grooving Cutoff Toolholder - 1" Shank Height x 1" Shank Width, TAG.. Insert Style, TGBH Toolholder Style, Series Sumo-Grip
Item #: 45375102
Brand: Iscar
Model #: 2801810
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Internal or External | External |
| Hand of Holder | Left Hand |
| Maximum Depth of Cut (Decimal Inch) | 0.9800 |
| Maximum Groove Width (Decimal Inch) | 0.3150 |
| Overall Length (Inch) | 6 |
| Overall Length (Decimal Inch) | 6.0000 |
| Series | Sumo-Grip |
| Toolholder Style | TGBH |
| Insert Compatibility | TAG.. |
| Shank Height (Inch) | 1 |
| Shank Height (Decimal Inch) | 1.0000 |
| Shank Width/Diameter (Inch) | 1 |
| Shank Width/Diameter (Decimal Inch) | 1.0000 |
| Through Coolant | Through Coolant |
| Insert Holding Method | Clamp |
| Back of Bar to Cutting Edge (Decimal Inch) | 0.8600 |
| Head Length (Decimal Inch) | 1.6500 |
| Shank Length (Decimal Inch) | 4.3500 |
| Complete Insert Compatibility | TAG N-C/W/M; TAGB/TAGBA |
