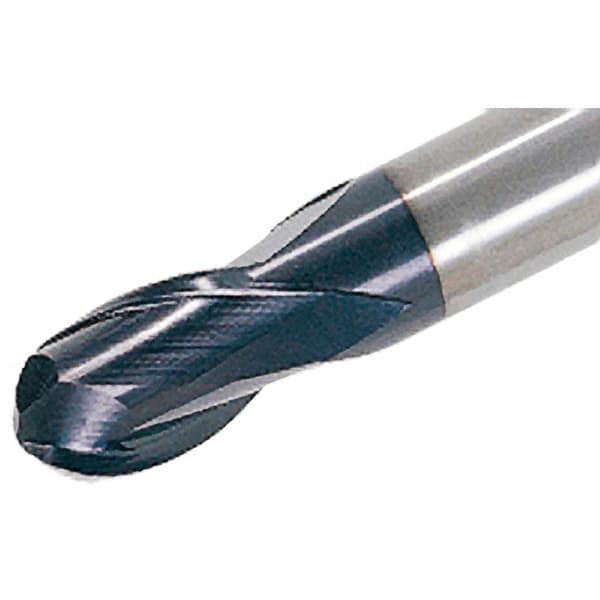

Iscar - 18mm Diam, 19mm LOC, 2 Flute Powdered Metal Ball End Mill - Single End, 79mm OAL, 16mm Shank Diam, Spiral Flute
Item #: 45374949
Brand: Iscar
Model #: 3121065
Exact Tooling IR#: 04
Features and Benefits
Powdered Metal (PM) is tougher and more cost effective than solid carbide. It is commonly used on highly abrasive materials including high silicon aluminums.
| Product Specifications | |
|---|---|
| Mill Diameter (mm) | 18.00 |
| Mill Diameter (Decimal Inch) | 0.7087 |
| Number of Flutes | 2 |
| Length of Cut (mm) | 19.00 |
| Length of Cut (Decimal Inch) | 0.7480 |
| Material | Powdered Metal |
| Overall Length (mm) | 79.00 |
| Shank Diameter (mm) | 16.00 |
| Single or Double End | Single |
| Helix Angle | 30.00 |
| Extended Reach | No |
| Helix Style | Medium |
| Mill Diameter Tolerance (mm) | -0.040 to 0.073 |
| Flute Type | Spiral |
| Undercutting | No |
| Shank Diameter Tolerance (mm) | 0.000/-0.011 |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
