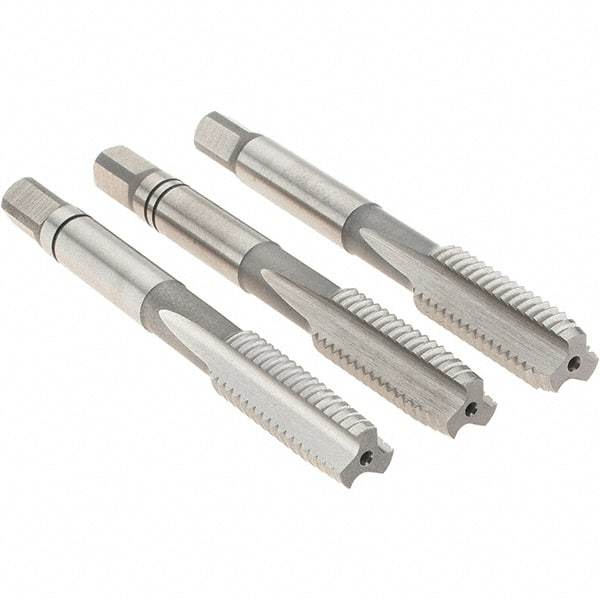

Iscar - M8x1.25 Metric Coarse, 3 Flute, Bottoming, Plug & Taper, Uncoated, Uncoated Finish, High Speed Steel Tap Set - Right Hand Cut, 63mm OAL, 0.787" Thread Length, 6H Class of Fit, Series TPH
Item #: 45374071
Brand: Iscar
Model #: 4445014
Exact Tooling IR#: 04
Features and Benefits
Bottoming chamfers have 1 to 2 threads. Plug chamfers have 3 to 5 threads. Taper chamfers have 7 to 10 threads and are typically used as a starter tap. They all can be used for threading blind holes.
High Speed Steel (HSS) provides good wear-resistance and can be used in general purpose applications for both ferrous and non-ferrous materials.
| Product Specifications | |
|---|---|
| Thread Size | M8x1.25 |
| Number of Flutes | 3 |
| Chamfer | Bottoming; Plug; Taper |
| Material | High Speed Steel |
| Finish/Coating | Uncoated |
| Thread Direction | Right Hand |
| Class of Fit | 6H |
| Thread Length (Decimal Inch) | 0.7870 |
| Overall Length (mm) | 63.00 |
| Thread Standard | Metric Coarse |
| Series/List | TPH |
| Number of Pieces | 3 |
