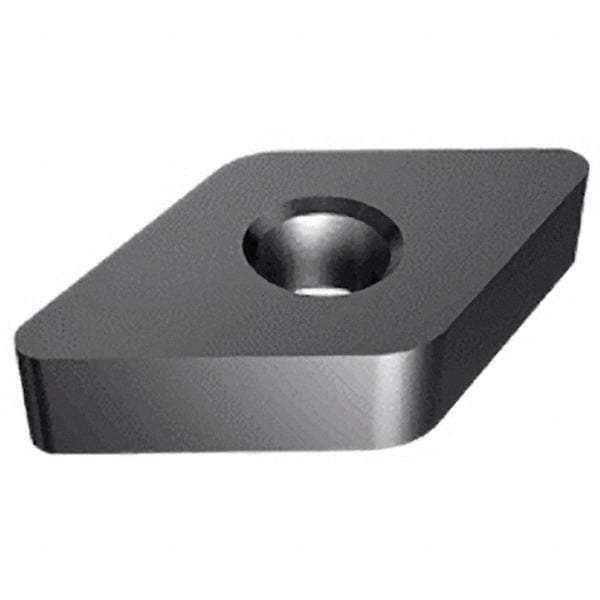

Iscar - DNGA442 T Grade IN22 Ceramic Turning Insert - Uncoated, 55° Diamond, 1/2" Inscr Circle, 1/4" Thick, 1/32" Corner Radius
Item #: 45371663
Brand: Iscar
Model #: 5792168
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | DNGA |
| Insert Size | 442 |
| Material | Ceramic |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Corner Radius (Inch) | 1/32 |
| Corner Radius (Decimal Inch) | 0.0312 |
| Manufacturer's Grade | IN22 |
| Coating | Uncoated |
| Chip Breaker | T |
| Relief Angle | 0 |
| Included Angle | 55 |
| Series | Isoturn |
| Insert Holding Method | Pin & Clamp |
| Shape | Diamond |
