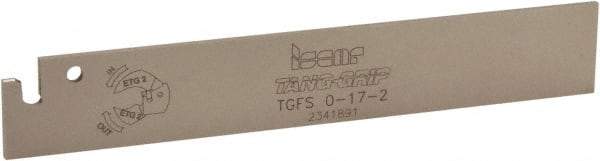

Iscar - 0.6772" Blade Height, 0.065" Blade Width, 4.331" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFS Blade, Tang-Grip Series
Item #: 45371465
Brand: Iscar
Model #: 2301914
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 17.20 |
| Blade Height (Decimal Inch) | 0.6772 |
| Blade Width (mm) | 1.65 |
| Blade Width (Decimal Inch) | 0.0650 |
| Blade Overall Length (mm) | 110.00 |
| Blade Overall Length (Decimal Inch) | 4.3310 |
| Blade Style | TGFS |
| Insert Style | TAG 2.. |
| Insert Width (mm) | 1.80 |
| Insert Width (Decimal Inch) | 0.0710 |
| Series | Tang-Grip |
| Insert Seat Size | 1.65 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 1.3800 |
| Cutting Height (mm) | 17.20 |
| Cutting Height (Decimal Inch) | 0.6770 |
| Minimum Insert Width (mm) | 1.80 |
| Minimum Insert Width (Decimal Inch) | 0.0710 |
| Maximum Insert Width (mm) | 2.40 |
| Maximum Insert Width (Decimal Inch) | 0.0945 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
| Manufacturers Catalog Number | TGFS 0-17-2 |
