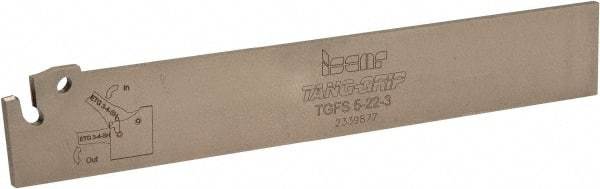

Iscar - 7/8" Blade Height, 0.098" Blade Width, 5-29/32" OAL, Neutral Cut, Single End Indexable Cut-Off Blade - TGFS Blade, Tang-Grip Series
Item #: 45371440
Brand: Iscar
Model #: 2301919
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Single or Double End | Single |
| Cutting Direction | Neutral |
| Blade Height (mm) | 22.20 |
| Blade Height (Decimal Inch) | 0.8740 |
| Blade Width (mm) | 2.50 |
| Blade Width (Decimal Inch) | 0.0980 |
| Blade Overall Length (mm) | 150.00 |
| Blade Overall Length (Decimal Inch) | 5.9060 |
| Blade Style | TGFS |
| Insert Style | TAG 3.. |
| Insert Width (mm) | 2.80 |
| Insert Width (Decimal Inch) | 0.1102 |
| Series | Tang-Grip |
| Insert Seat Size | 2.5 |
| Insert Holding Method | Clamp |
| Maximum Workpiece Diameter (Decimal Inch) | 2.9500 |
| Cutting Height (mm) | 22.40 |
| Cutting Height (Decimal Inch) | 0.8820 |
| Minimum Insert Width (mm) | 2.80 |
| Minimum Insert Width (Decimal Inch) | 0.1102 |
| Maximum Insert Width (mm) | 3.50 |
| Maximum Insert Width (Decimal Inch) | 0.1378 |
| Complete Insert Compatibility | TAG L3C-15D; TAG L3C-6D; TAG L3J-15D; TAG L3J-6D; TAG L3JS-6D; TAG N3A; TAG N3C; TAG N3CB; TAG N3J; TAG N3JS; TAG N3JT; TAG N3LF; TAG N3M; TAG N3UT; TAG N3W; TAG R3C-15D; TAG R3C-6D; TAG R3C-8D; TAG R3J-6D; TAG R3JS-6D |
| Manufacturers Catalog Number | TGFS 5-22-3 |
