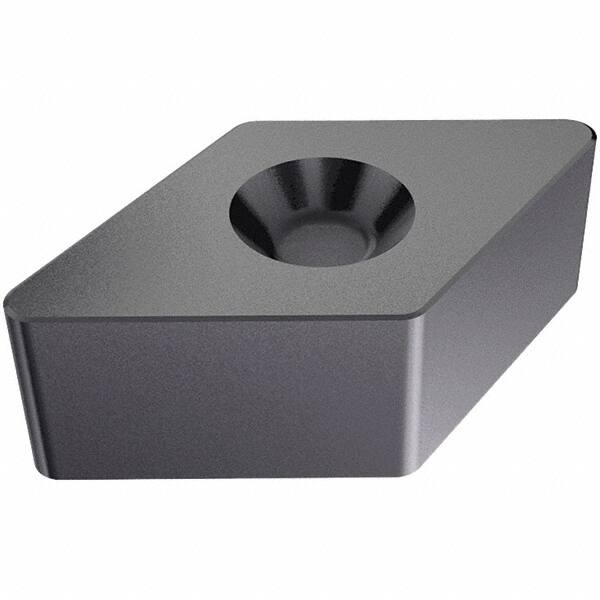

Iscar - DNGX454 T Grade IS8 Ceramic Turning Insert - Uncoated, 55° Diamond, 1/2" Inscr Circle, 5/16" Thick, 1/16" Corner Radius
Item #: 45370673
Brand: Iscar
Model #: 5796203
Exact Tooling IR#: 04
Features and Benefits
Ceramic is a highly heat resistant material composed of aluminum oxide and silicon nitride. It is commonly used at high speeds on steel, cast and ductile iron and high temperature alloys.
| Product Specifications | |
|---|---|
| Insert Style | DNGX |
| Insert Size | 454 |
| Material | Ceramic |
| Length (mm) | 15.50 |
| Length (Decimal Inch) | 0.6102 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Inscribed Circle (Inch) | 1/2 |
| Thickness (Inch) | 5/16 |
| Thickness (Decimal Inch) | 0.3125 |
| Corner Radius (Inch) | 1/16 |
| Corner Radius (Decimal Inch) | 0.0625 |
| Manufacturer's Grade | IS8 |
| Coating | Uncoated |
| Chip Breaker | T |
| Relief Angle | 0 |
| Included Angle | 55 |
| Series | Isoturn |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1970 |
| Insert Holding Method | Clamp |
| Shape | Diamond |
