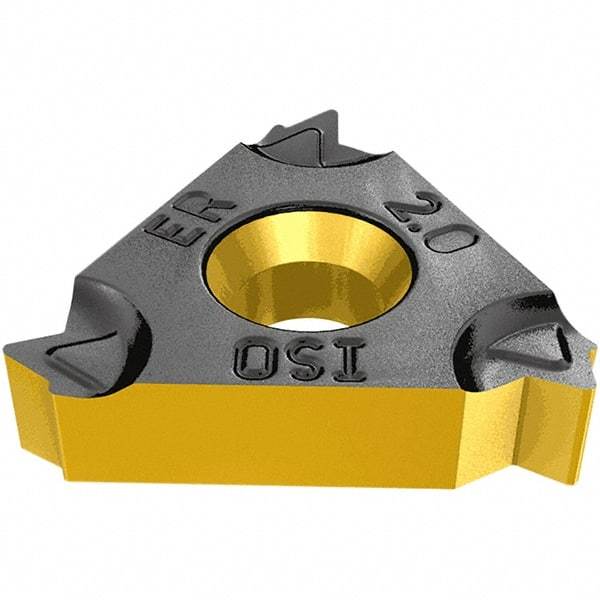

Iscar - 22ER External Right Hand 7-5 Partial Profile 55° Laydown Threading Insert - Grade IC908, TiAlN Coated Carbide, 12.7mm Inscribed Circle
Item #: 45359338
Brand: Iscar
Model #: 5990092
Exact Tooling IR#: 04
Features and Benefits
Solid carbide provides better rigidity than high speed steel. It is extremely heat resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Material | Carbide |
| Insert Style | 22ER |
| Insert Hand | Right Hand |
| Thread Type | External |
| Thread Standard | Partial Profile 55 |
| Material Grade | Fine Grain |
| Manufacturer's Grade | IC908 |
| Threads Per Inch | 7-5 |
| Pitch (mm) | 3.50-5.00 |
| Inscribed Circle (mm) | 12.70 |
| Inscribed Circle (Inch) | 1/2 |
| Inscribed Circle (Decimal Inch) | 0.5000 |
| Thickness (Decimal Inch) | 0.1880 |
| Coating | TiAlN |
| Coating Process | PVD |
| Corner Radius (mm) | 0.43 |
| Corner Radius (Decimal Inch) | 0.0170 |
