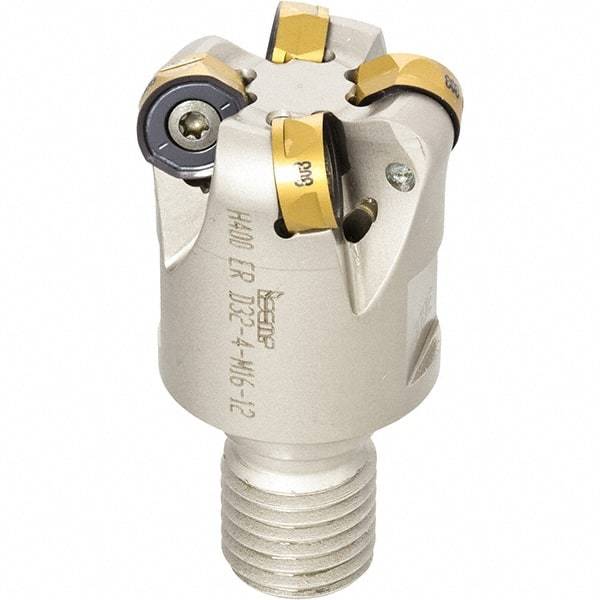

Iscar - 32mm Cutting Diam, 8.7mm Max Depth of Cut, Modular Connection Indexable Copy End Mill - 4 Inserts, H400 RNHU 1205 Insert, H400, ER-M Toolholder, Through Coolant
Item #: 45323557
Brand: Iscar
Model #: 3105949
Exact Tooling IR#: 04
Features and Benefits
Modular connections allow for single end mill to accept various shank diameters without changing machine toolholding set-ups.
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 32.00 |
| Cutting Diameter (Decimal Inch) | 1.2600 |
| Maximum Depth of Cut (mm) | 8.70 |
| Maximum Depth of Cut (Decimal Inch) | 0.3425 |
| Shank Type | Modular Connection |
| Modular Connection Thread Size | M16 |
| Number of Cutter Inserts | 4 |
| Insert Style | H400 RNHU 1205 |
| Toolholder Style | H400; ER-M |
| Series | FlexFit; Helido |
| Overall Length (mm) | 35.00 |
| Overall Length (Decimal Inch) | 1.3780 |
| Insert Holding Method | Screw |
| Through Coolant | Through Coolant |
| Number of Flutes | 4 |
| Minimum Cutting Diameter (mm) | 20.00 |
| Modular Connection Size | M16 |
