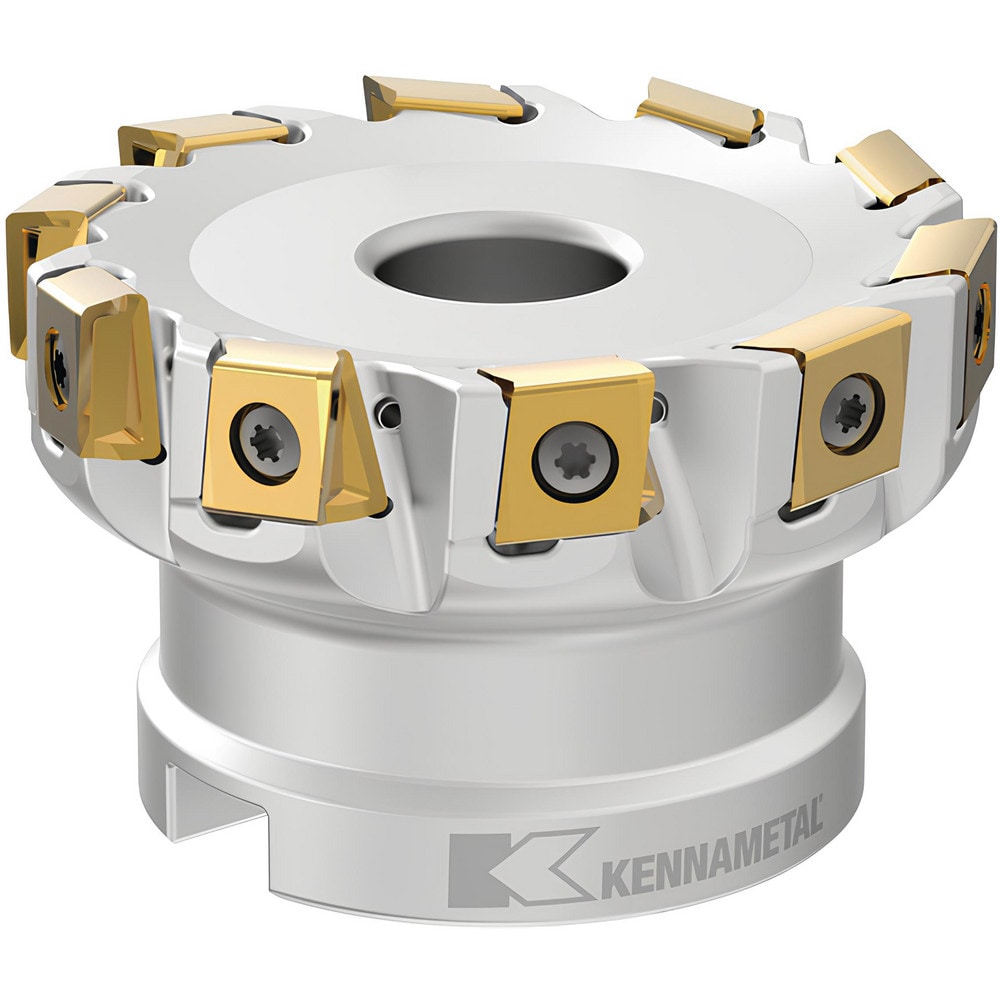

Indexable Square-Shoulder Face Mill: KT4D500Z16S150LN12L238, 5'' Cut Dia, 0.4781" Max Cutting Depth
Item #: 59511378
Brand: Kennametal
Model #: 7009756
Product Specifications
| Minimum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Inch) | 5 |
| Maximum Depth of Cut (Decimal Inch) | 0.4781 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | 12 |
| Cutter Style | KT4 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Rake | Neutral |
| Series | Mill 4-12KT |
| Overall Height (Inch) | 2-3/8 |
| Keyway Width (Decimal Inch) | 0.6350 |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Complete Insert Compatibility | LNGQ12-GE |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | KT4D500Z16S150LN12L238 |
| Coolant Through | No |
| Number Of Cutter Inserts | 16 |
| Minimum Cutting Diameter (Inch) | 5 |
| Maximum Cutting Diameter (Inch) | 5 |
| Maximum Depth of Cut (Decimal Inch) | 0.4781 |
| Arbor Hole Diameter (Inch) | 1-1/2 |
| Compatible Insert Size Code | 12 |
| Cutter Style | KT4 |
| Cutting Direction | Left Hand |
| Insert Holding Method | Screw Clamping |
| Lead Angle | 90 |
| Rake | Neutral |
| Series | Mill 4-12KT |
| Overall Height (Inch) | 2-3/8 |
| Keyway Width (Decimal Inch) | 0.6350 |
| Hub Diameter (Decimal Inch) | 3.8100 |
| Complete Insert Compatibility | LNGQ12-GE |
| UNSPSC Code | 27112803 |
| Toolholder Material | Steel |
| Manufacturers Catalog Number | KT4D500Z16S150LN12L238 |
| Coolant Through | No |
| Number Of Cutter Inserts | 16 |
| MSC Part # | 59511378 |
| Mfr Part # | 7009756 |
| Country of Origin Country of Origin is subject to change | UNITED STATES |
