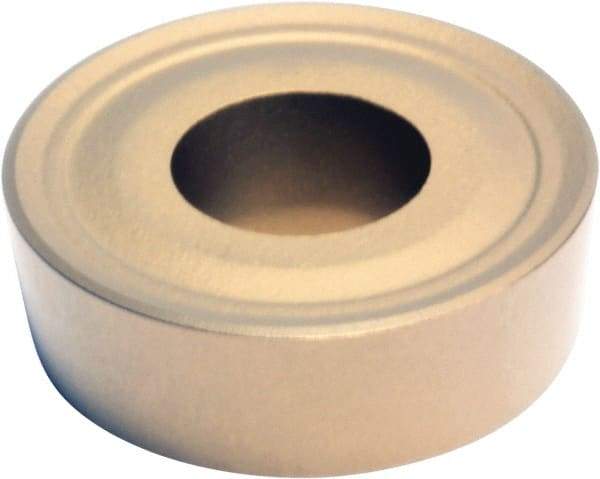

Sumitomo - RCMX160600 RP Grade AC420K Carbide Turning Insert - Proprietary Finish, Round, 16mm Inscr Circle, 1/4" Thick
Item #: 45220910
Brand: Sumitomo
Model #: 191R312
Exact Tooling IR#: 04
Features and Benefits
Solid carbide is extremely heat-resistant and used for high speed applications on cast iron, nonferrous materials, plastics and other tough-to-machine materials.
| Product Specifications | |
|---|---|
| Insert Style | RCMX |
| Insert Size | 160600 |
| Material | Carbide |
| Inscribed Circle (mm) | 16.00 |
| Inscribed Circle (Decimal Inch) | 0.6300 |
| Thickness (Inch) | 1/4 |
| Thickness (Decimal Inch) | 0.2500 |
| Manufacturer's Grade | AC420K |
| Coating | Proprietary |
| Chip Breaker | RP |
| Hole Diameter (Decimal Inch) | 0.2047 |
| Rake | Negative |
| Rake Angle | -15 |
| Relief Angle | 7 |
| Proprietary Coating Designation | FF |
| Coating Process | CVD |
| Insert Holding Method | Screw |
| Shape | Round |
