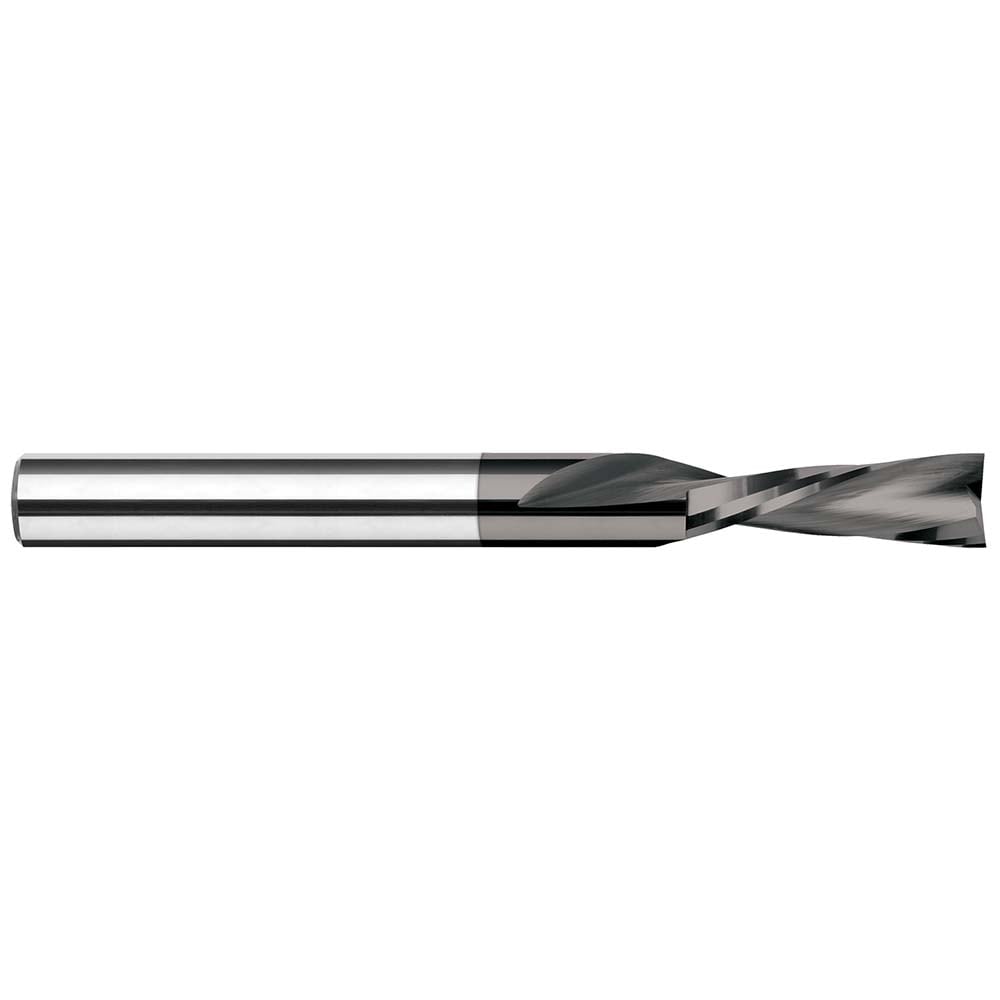

Square End Mills; Length of Cut (Decimal Inch): 0.7500; Length of Cut (Inch): 3/4; Shank Diameter (mm): 12.70; Shank Diameter (Inch): 1/2; Shank Diameter (Decimal Inch): 0.5000; Overall Length (Decimal Inch): 4.0000; Overall Length (Inch): 4
Item #: 05797873
Brand: Harvey Tool
Model #: 966332-C4
Product Specifications
| Length of Cut (Decimal Inch) | 0.7500 |
| Length of Cut (Inch) | 3/4 |
| Shank Diameter (mm) | 12.70 |
| Shank Diameter (Inch) | 1/2 |
| Shank Diameter (Decimal Inch) | 0.5000 |
| Overall Length (Decimal Inch) | 4.0000 |
| Overall Length (Inch) | 4 |
| Centercutting | No |
| Cutting Direction | Right Hand |
| Flute Direction | Right Hand |
| Extended Reach | No |
| Coating/Finish | Amorphous Diamond |
| Chipbreaker | No |
| Flute Type | Downcut |
| Shank Type | Straight-Cylindrical |
| Material Grade | Solid Carbide |
| Series | End Mills for Plastics - Square Downcut - 2 Flute - Slow Helix |
| UNSPSC Code | 27112803 |
