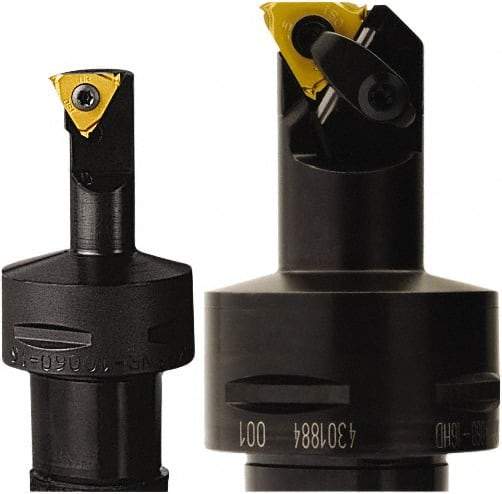

Seco - Internal Thread, Right Hand Cut, 40mm Shank Width x 40mm Shank Height Indexable Threading Toolholder - 22NR Insert Compatibility, CN Toolholder, Series Snap Tap
Item #: 45137874
Brand: Seco
Model #: 30428
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Thread Type | Internal |
| Hand of Holder | Right Hand |
| Shank Width/Diameter (mm) | 40.00 |
| Shank Width/Diameter (Decimal Inch) | 1.5748 |
| Shank Height (mm) | 40.00 |
| Shank Height (Decimal Inch) | 1.5748 |
| Insert Compatibility | 22NR |
| Series | Snap Tap |
| Toolholder Style | CN |
| Through Coolant | No |
| Multi-Use Tool | Yes |
| Multi-Use Application | Threading; Turning |
| Insert Holding Method | Clamp |
| Center to Cutting Edge (mm) | 22.00 |
| Center to Cutting Edge (Decimal Inch) | 0.8661 |
| Head Length (mm) | 90.00 |
| Head Length (Decimal Inch) | 3.5433 |
| Insert Inscribed Circle (mm) | 12.70 |
| Insert Inscribed Circle (Decimal Inch) | 0.5000 |
