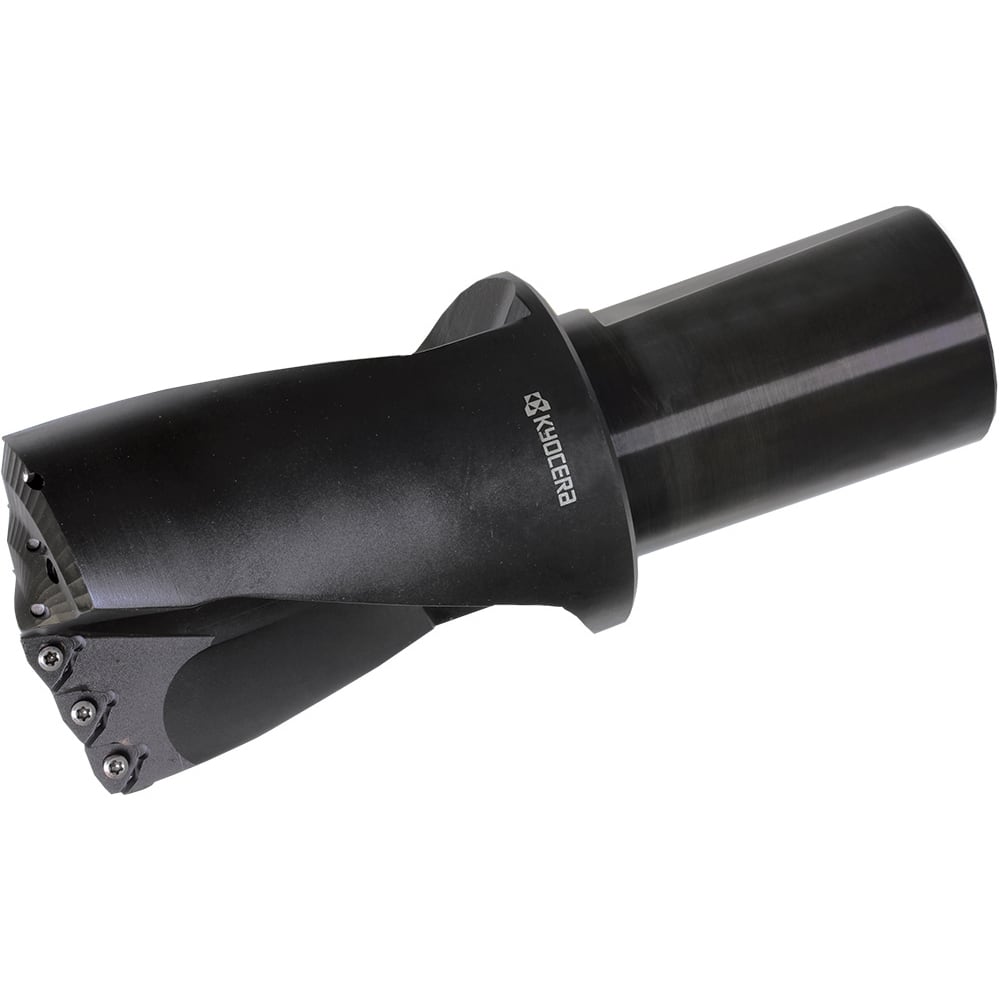

Indexable Insert Drills; Drill Style: DR; Drill Diameter (Decimal Inch): 3.8750; Maximum Drill Diameter (Decimal Inch): 3.8750; Drill Diameter (Inch): 3-7/8; Maximum Drill Depth (Decimal Inch): 8.4400; Shank Type: Straight-Cylindrical; Shank Diameter (Inc
Item #: 45083524
Brand: Kyocera
Model #: OTM86378
Product Specifications
| Drill Style | DR |
| Drill Diameter (Decimal Inch) | 3.8750 |
| Maximum Drill Diameter (Decimal Inch) | 3.8750 |
| Drill Diameter (Inch) | 3-7/8 |
| Maximum Drill Depth (Decimal Inch) | 8.4400 |
| Shank Type | Straight-Cylindrical |
| Shank Diameter (Inch) | 2 |
| Shank Diameter (Decimal Inch) | 2.0000 |
| Number of Drill Inserts | 6 |
| Cutting Direction | Right Hand |
| Maximum Drill Depth Range (Decimal Inch) | 7.0000 to 10.0000 |
| Tool Material | Steel |
| Drill Depth by Diameter Ratio | 2.25xD |
| Flute Length (Decimal Inch) | 8.4400 |
| Shank Length (Decimal Inch) | 3.2500 |
| Insert Compatibility | WCMX |
| Coolant Through | Yes |
