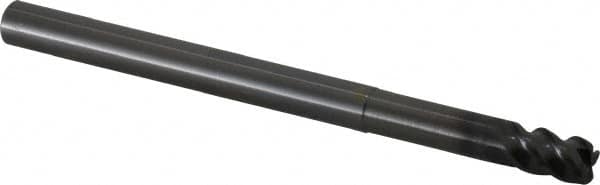

OSG - 8mm Diam 4 Flute Solid Carbide 1mm Corner Radius End Mill
Item #: 44867281
Brand: OSG
Model #: 457108311
Product Specifications
| Mill Diameter (mm) | 8.00 |
| Mill Diameter (Decimal Inch) | 0.3150 |
| End Type | Corner Radius |
| Corner Radius (mm) | 1.000 |
| Corner Radius (Decimal Inch) | 0.0394 |
| Number of Flutes | 4 |
| Material | Solid Carbide |
| Finish/Coating | WXS |
| Length of Cut (mm) | 12.00 |
| Length of Cut (Decimal Inch) | 0.4724 |
| Shank Diameter (mm) | 8.00 |
| Overall Length (mm) | 110.00 |
| Flute Type | Spiral |
| Cutting Direction | Right Hand |
| Helix Angle | 45.00 |
| Variable Index | No |
| Variable Helix | No |
| Reach Length (mm) | 40.00 |
| Material Grade | Micrograin |
| Single or Double End | Single |
| Centercutting | Yes |
| Flute Direction | Right Hand |
| Mill Diameter Tolerance (Decimal Inch) | 0.0000/-0.0008 |
| Shank Diameter Tolerance (Decimal Inch) | -0.0001/-0.0004 |
| Extended Reach | Yes |
| Series/List | 4571 |
