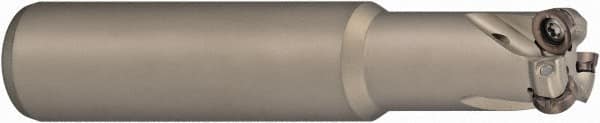

Sumitomo - 1" Cutting Diam, 1" Shank Diam, 5mm Max Depth of Cut, Weldon Flat Indexable Copy End Mill - 2 Inserts, RDET10 Insert, RSX Toolholder
Item #: 44700284
Brand: Sumitomo
Model #: 2200WB4
Exact Tooling IR#: 04
| Product Specifications | |
|---|---|
| Cutting Diameter (mm) | 25.40 |
| Cutting Diameter (Inch) | 1 |
| Cutting Diameter (Decimal Inch) | 1.0000 |
| Maximum Depth of Cut (mm) | 5.00 |
| Maximum Depth of Cut (Decimal Inch) | 0.1969 |
| Shank Type | Weldon |
| Shank Diameter (Inch) | 1 |
| Shank Diameter (Decimal Inch) | 1.0000 |
| Number of Cutter Inserts | 2 |
| Insert Style | RDET10 |
| Toolholder Style | RSX |
| Series | RSX |
| Overall Length (Decimal Inch) | 4.3400 |
| Insert Holding Method | Screw |
