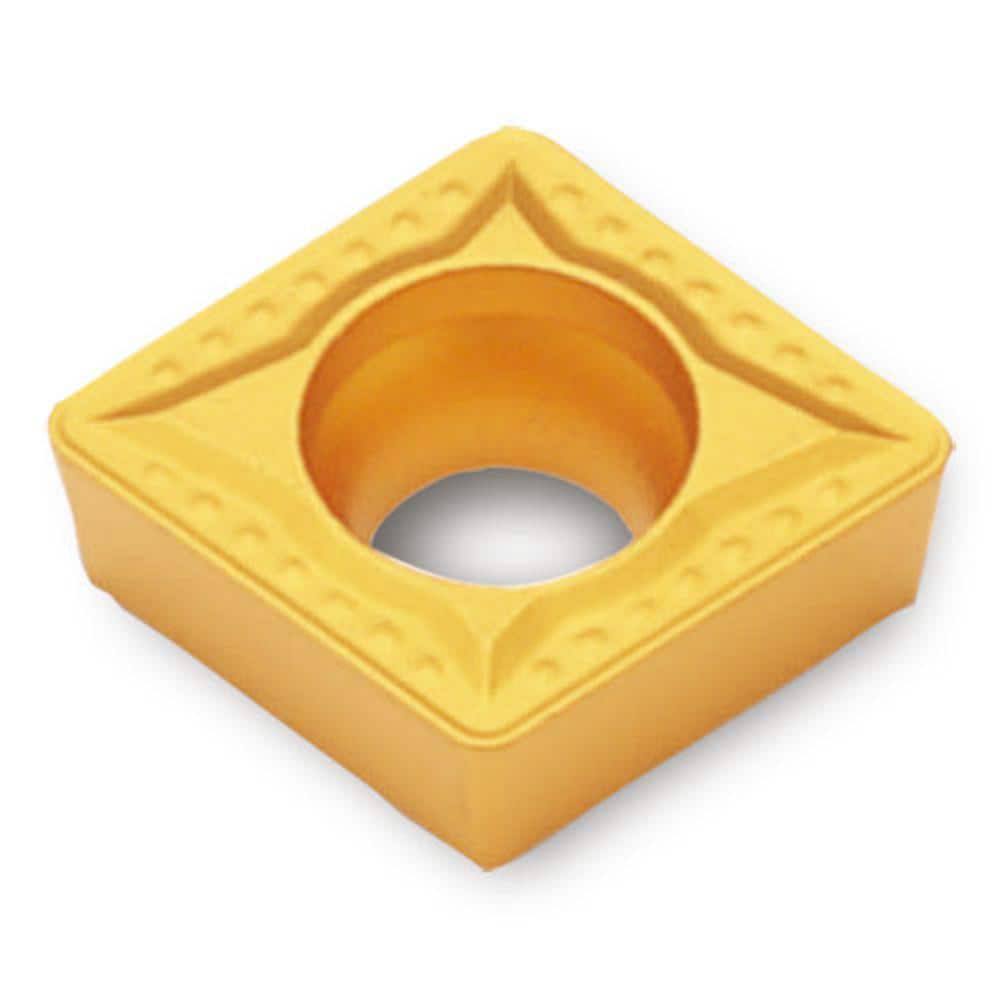

Turning Insert: CCMT32.52MT TT7015, Carbide
Item #: 29903499
Brand: Ingersoll Cutting Tools
Model #: 5523568
Product Specifications
| ANSI Insert Code | CCMT32.52 |
| ISO Insert Code | CCMT09T308 |
| Relief Angle | 7 |
| Insert Style | CCMT |
| Corner Radius (Decimal Inch) | 0.0310 |
| Included Angle | 80 |
| Manufacturer Grade | TT7015 |
| Coating/Finish | TiCN; TiN; Al2O3 |
| Wiper Edge | No |
| Insert Hand | Neutral |
| Insert Thickness (Decimal Inch) | 0.1560 |
| Series | CCMT |
| Inscribed Circle (Decimal Inch) | 0.3750 |
| Inscribed Circle (Inch) | 3/8 |
| Insert Material | Carbide |
| Insert Shape | C - Diamond (Rhombic) 80-Deg |
| Chip Breaker Operation | Medium Machining; Roughing |
| Grade Characteristics | Cast Iron (K) - High Wear-Resistance to Moderate Wear-Resistance and Toughness |
| Side Clearance | Positive |
| Number Of Cutting Edges | 2 |
| Insert Shape Code | C |
| Hole Diameter (Decimal Inch) | 0.1730 |
| Maximum Depth of Cut (Decimal Inch) | 0.1380 |
| Insert Holding Method | Screw |
| Clearance Code | C |
| Tolerance Code | M |
| Coating Process | CVD |
| Rake | Positive |
| Insert Length (Decimal Inch) | 0.3820 |
| Primary Workpiece Material | Cast Iron |
| Primary Workpiece Material Code | K |
| Iso Code | CCMT09T308MT TT7015 |
| Chip Breaker | MT |
| ANSI Size Code | 32.52 |
| ISO Size Code | 09T308 |
| UNSPSC Code | 23242105 |
| Insert Size Code | 32.52 |
