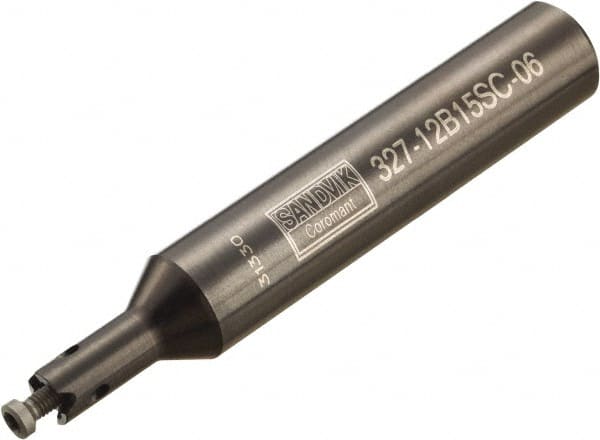

Sandvik Coromant - CoroMill 327 9mm Weldon Shank Milling Tip Insert Holder & Shank - 74.25mm Projection, 0.3543" Neck Diam, 9mm Nose Diam, 74.25mm OAL, Steel 327-xxB Tool Holder
Item #: 44219137
Brand: Sandvik Coromant
Model #: 5758728
Exact Tooling IR#: 04
Features and Benefits
Weldon flats, also known as Weldon Shanks, are designed with a set screw that secures the tool for increased torque and reduced slipping. The diameters are typically different from the diameter of the cutting part of the tool.
| Product Specifications | |
|---|---|
| Series | CoroMill 327 |
| Shank Type | Weldon Shank |
| Shank Diameter (mm) | 9.00 |
| Shank Diameter (Decimal Inch) | 0.3543 |
| Projection (mm) | 74.25 |
| Projection (Decimal Inch) | 2.9232 |
| Neck Diameter (Decimal Inch) | 0.3543 |
| Nose Diameter (mm) | 9.00 |
| Nose Diameter (Decimal Inch) | 0.3543 |
| Toolholder Material | Steel |
| Overall Length (mm) | 74.25 |
| Overall Length (Decimal Inch) | 2.9232 |
| Through Coolant | Through Coolant |
| Weldon Flat | Yes |
| Head Length (Decimal Inch) | 0.4823 |
| Maximum Diameter (mm) | 9.00 |
| Maximum Diameter (Decimal Inch) | 0.3543 |
| Shank Material | Steel |
| Toolholder Style | 327-xxB |
