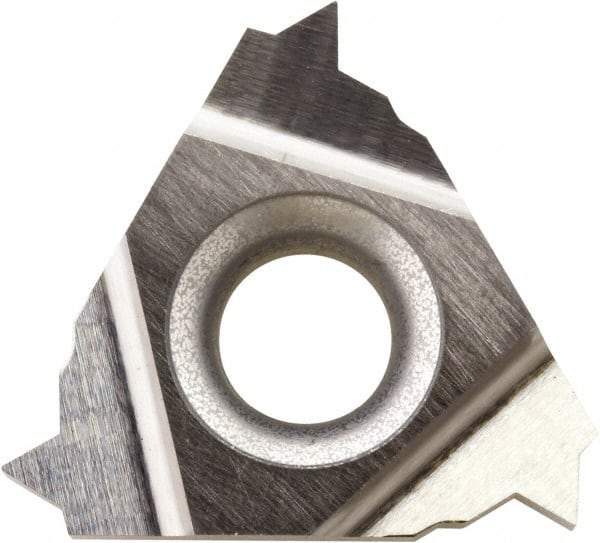

Kyocera - TNN32 Grade TC60, External NPT Threading Insert - 11-1/2 TPI Int Pitch, Right Hand Insert, Uncoated, Cermet
Item #: 44081750
Brand: Kyocera
Model #: 8850205
Exact Tooling IR#: 04
Features and Benefits
Uncoated tools do not feature supportive treatments on the cutting edge. They are are used at reduced speeds in general applications on non-ferrous metals.
Cermet is comprised of ceramic and metal and can be used at higher speeds than coated carbides. It is commonly used on cast iron, steel, stainless steel and nonferrous materials.
| Product Specifications | |
|---|---|
| Insert Style | TNN |
| Insert Size | 32 |
| Thread Type | External |
| Cutting Direction | Right Hand |
| Insert Hand | Right Hand |
| Thread Standard | NPT |
| Manufacturer's Grade | TC60 |
| Internal Pitch/TPI | 11.5 TPI |
| Coating | Uncoated |
| Material | Cermet |
| Coating Process | Uncoated |
| Corner Radius (mm) | 0.06 |
| Thickness (mm) | 3.68 |
| Included Angle of Threading Tip | 55 |
| Manufacturers Catalog Number | TNN32ER115NPTTC60 |
